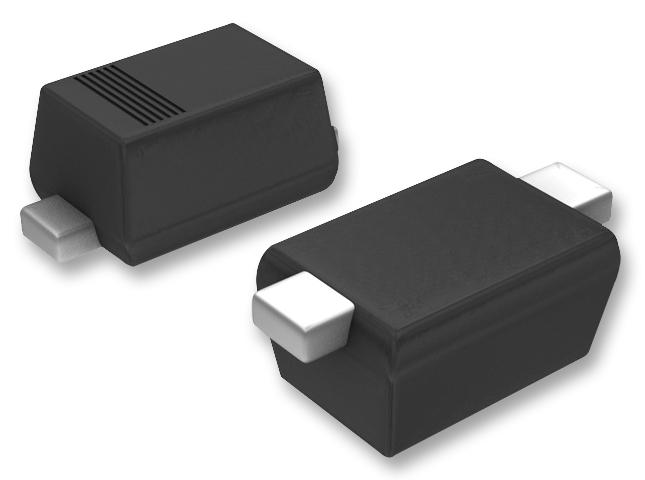

NEXPERIA - PESD15VS1UB,115 - ESD Protection Device, TVS, 18 V, SOD-523, 2 Pins, 15 V, PESD1
- Clamping Voltage Vc Max: 18V
- Diode Case Style: SOD-523
- No. of Pins: 2Pins
- Operating Voltage: 15V
- Power Dissipation Pd: -
- Product Range: PESD1 Series
- Automotive Qualification Standard: -
- SVHC: No SVHC (27-Jun-2018)
- Breakdown Voltage: 18V
- Breakdown Voltage Max: 18.4V
- Breakdown Voltage Min: 17.6V
- Breakdown Voltage Range: 17.6V to 18.4V
- Breakover Voltage Min: 17.6V
- Capacitance Cd @ Vr Max: 70pF
- Capacitance Cd @ Vr Typ: 32pF
- Clamping Voltage @ 8/20µs Max: 40V
- Diode Type: Unidirectional TVS
- Operating Temperature Max: 150°C
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +150°C
- Peak Pulse Current Ippm: 5A
- Peak Pulse Power Dissipation: 160W
- Pin Configuration: 1
- Reverse Stand-Off Voltage Vrwm: 15V
- SMD Marking: N4
- Stand-off Voltage: 15V
- TVS Polarity: Unidirectional
