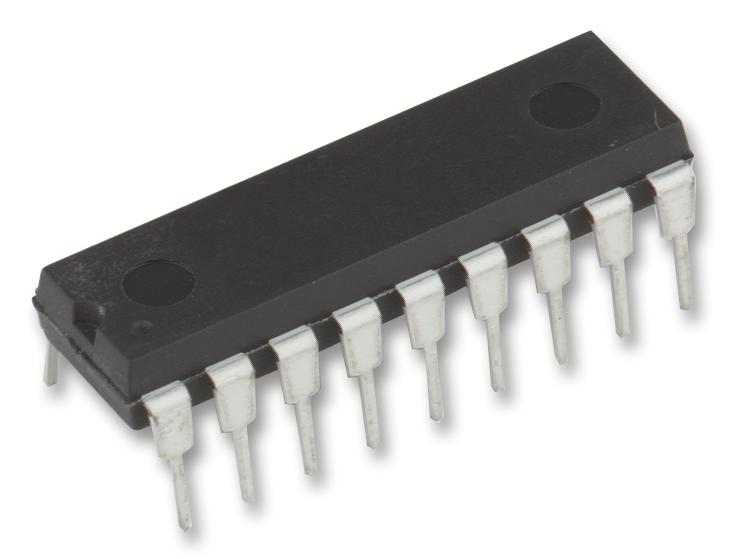

MICROCHIP - PIC16F628A-I/P - 8 Bit MCU, Flash, PIC16 Family PIC16F6XX Series Microcontrollers, 20 MHz, 3.5 KB, 224 Byte, 18 Pins
- Product Range: PIC16 Family PIC16F6XX Series Microcontrollers
- CPU Speed: 20MHz
- Program Memory Size: 3.5KB
- RAM Memory Size: 224Byte
- No. of Pins: 18Pins
- MCU Case Style: DIP
- No. of I/O's: 16I/O's
- Embedded Interface Type: USART
- Supply Voltage Min: 3V
- Supply Voltage Max: 5.5V
- MCU Family: PIC16
- MCU Series: PIC16F6xx
- Automotive Qualification Standard: -
- RoHS Phthalates Compliant: Yes
- MSL: -
- SVHC: No SVHC (27-Jun-2018)
- Controller Family/Series: PIC16F6xxx
- EEPROM Memory Size: 128Byte
- Flash Memory Size: 3.5KB
- IC Generic Number: 16F628
- IC Temperature Range: Industrial
- Logic Function Number: 16F628A
- MPU Core Size: 8bit
- Memory Type: Flash
- Microprocessor/Controller Features: BOD, COMP, ICSP, POR, TIMERS, WDT
- No. of Bits: 8bit
- No. of PWM Channels: 1
- No. of Timers: 3
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +85°C
- Oscillator Type: External, Internal
- Peripherals: Comparator, PWM, Timer
- Program Memory Size: 3.5KB
