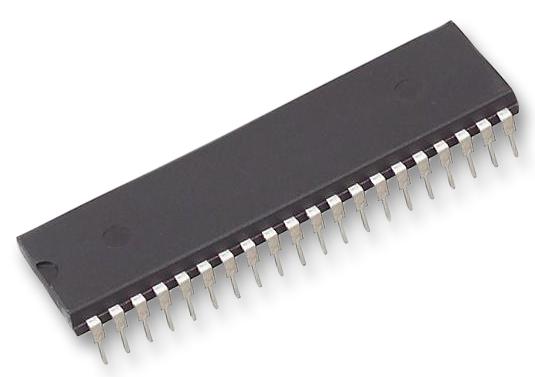

MICROCHIP - PIC16F724-I/P - 8 Bit MCU, Flash, PIC16 Family PIC16F7XX Series Microcontrollers, 20 MHz, 7 KB, 192 Byte, 40 Pins
- Product Range: PIC16 Family PIC16F7XX Series Microcontrollers
- CPU Speed: 20MHz
- Program Memory Size: 7KB
- RAM Memory Size: 192Byte
- No. of Pins: 40Pins
- MCU Case Style: DIP
- No. of I/O's: 36I/O's
- Embedded Interface Type: I2C, SPI, USART
- Supply Voltage Min: 1.8V
- Supply Voltage Max: 5.5V
- MCU Family: PIC16
- MCU Series: PIC16F7xx
- Automotive Qualification Standard: AEC-Q100
- RoHS Phthalates Compliant: Yes
- MSL: -
- SVHC: No SVHC (27-Jun-2018)
- Controller Family/Series: PIC16F
- Flash Memory Size: 7KB
- Logic Function Number: 16F724
- MPU Core Size: 8bit
- No. of ADC Inputs: 14
- No. of PWM Channels: 2
- No. of Timers: 3
- Number of bits in ADC: 8
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +85°C
- Oscillator Type: External, Internal
- Peripherals: ADC, PWM, Timer
- Program Memory Size: 7KB
- Supply Voltage Range: 1.8V to 5.5V
- Termination Type: Through Hole
