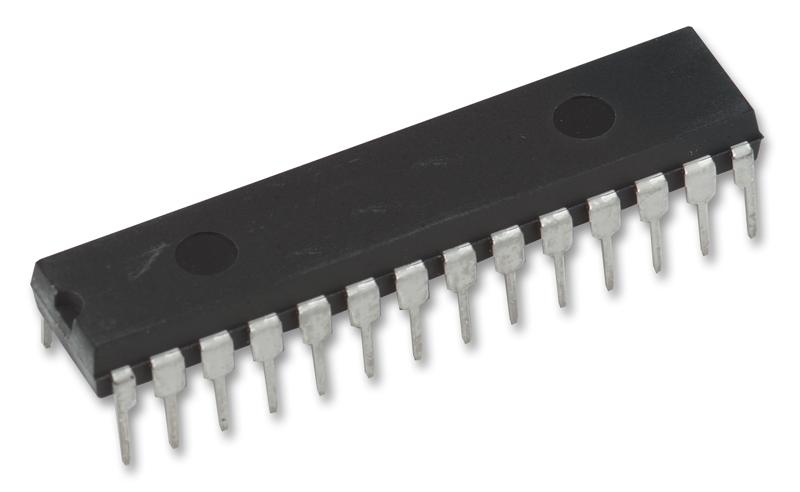

MICROCHIP - PIC18F2420-I/SP - 8 Bit MCU, Flash, PIC18 Family PIC18F24xx Series Microcontrollers, 40 MHz, 16 KB, 28 Pins, NDIP
- Product Range: PIC18 Family PIC18F24xx Series Microcontrollers
- CPU Speed: 40MHz
- Program Memory Size: 16KB
- RAM Memory Size: 768Byte
- No. of Pins: 28Pins
- MCU Case Style: NDIP
- No. of I/O's: 25I/O's
- Embedded Interface Type: EUSART, I2C, SPI
- Supply Voltage Min: 4.2V
- Supply Voltage Max: 5.5V
- MCU Family: PIC18
- MCU Series: PIC18F24xx
- Automotive Qualification Standard: -
- RoHS Phthalates Compliant: Yes
- MSL: -
- SVHC: No SVHC (27-Jun-2018)
- Controller Family/Series: PIC18F2xxx
- EEPROM Memory Size: 256Byte
- Flash Memory Size: 16KB
- IC Generic Number: 18F2420
- IC Temperature Range: Industrial
- Logic Function Number: 18F2420
- MPU Core Size: 8bit
- Memory Type: Flash
- Microprocessor/Controller Features: SPI, I²C, 2 x CCP, EUSART, 2 x Comparators, 1 x 8-bit timer, 3 x 16-bit timer
- No. of ADC Inputs: 10
- No. of Bits: 8bit
- No. of Internal Interrupts: 19
- No. of PWM Channels: 2
- No. of Timers: 4
- Number of bits In Timer: 16
- Number of bits in ADC: 10
- Operating Frequency: 40Hz
- Program Memory Size: 16KB
