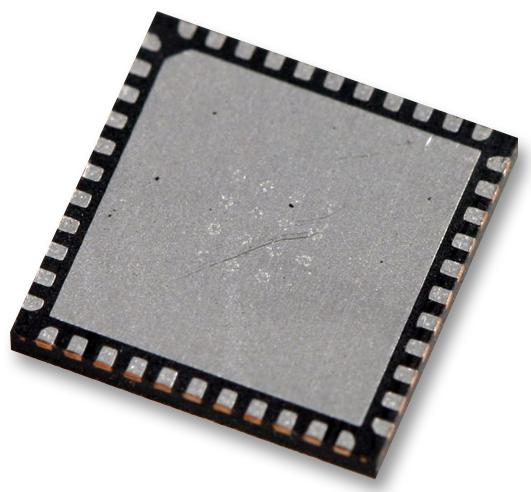

MICROCHIP - PIC24HJ128GP504-I/ML - PIC/DSPIC Microcontroller, PIC24 Family PIC24HJ GP Series Microcontrollers, PIC24, 16bit, 40 MHz
- Product Range: PIC24 Family PIC24HJ GP Series Microcontrollers
- Architecture: PIC24
- No. of Bits: 16bit
- CPU Speed: 40MHz
- Program Memory Size: 128KB
- RAM Memory Size: 8KB
- No. of Pins: 44Pins
- MCU Case Style: QFN
- No. of I/O's: 35I/O's
- Embedded Interface Type: CAN, I2C, SPI, UART
- Supply Voltage Min: 3V
- Supply Voltage Max: 3.6V
- MCU Family: PIC24
- MCU Series: PIC24HJ GP
- RoHS Phthalates Compliant: Yes
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- Automotive Qualification Standard: AEC-Q100
- Controller Family/Series: PIC24HJ
- Flash Memory Size: 128KB
- Logic Function Number: 24HJ128GP504
- MPU Core Size: 16bit
- Memory Type: Flash
- No. of ADC Inputs: 13
- No. of MIPS: 40
- No. of PWM Channels: 4
- No. of Timers: 7
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +85°C
- Oscillator Type: External, Internal
- Peripherals: ADC, Comparator, DMA, PWM, RTCC, Timer
- Program Memory Size: 128KB
- Supply Voltage Range: 3V to 3.6V
