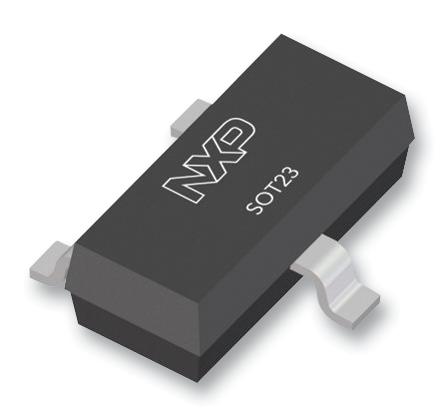

NEXPERIA - PMBTA06,215 - Bipolar (BJT) Single Transistor, General Purpose, NPN, 80 V, 500 mA, 250 mW, SOT-23, Surface Mount
- Transistor Polarity: NPN
- Collector Emitter Voltage V(br)ceo: 80V
- Transition Frequency ft: 100MHz
- Power Dissipation Pd: 250mW
- DC Collector Current: 500mA
- DC Current Gain hFE: 100hFE
- Transistor Case Style: SOT-23
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- Collector Emitter Saturation Voltage Vce(on): 250mV
- Current Ic @ Vce Sat: 100mA
- Current Ic Continuous a Max: 500mA
- Current Ic hFE: 10mA
- Gain Bandwidth ft Typ: 100MHz
- Hfe Min: 100
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +150°C
- Peak Current Icm: 1A
- Power Dissipation Ptot Max: 250mW
- SMD Marking: 1G
- Termination Type: Surface Mount Device
