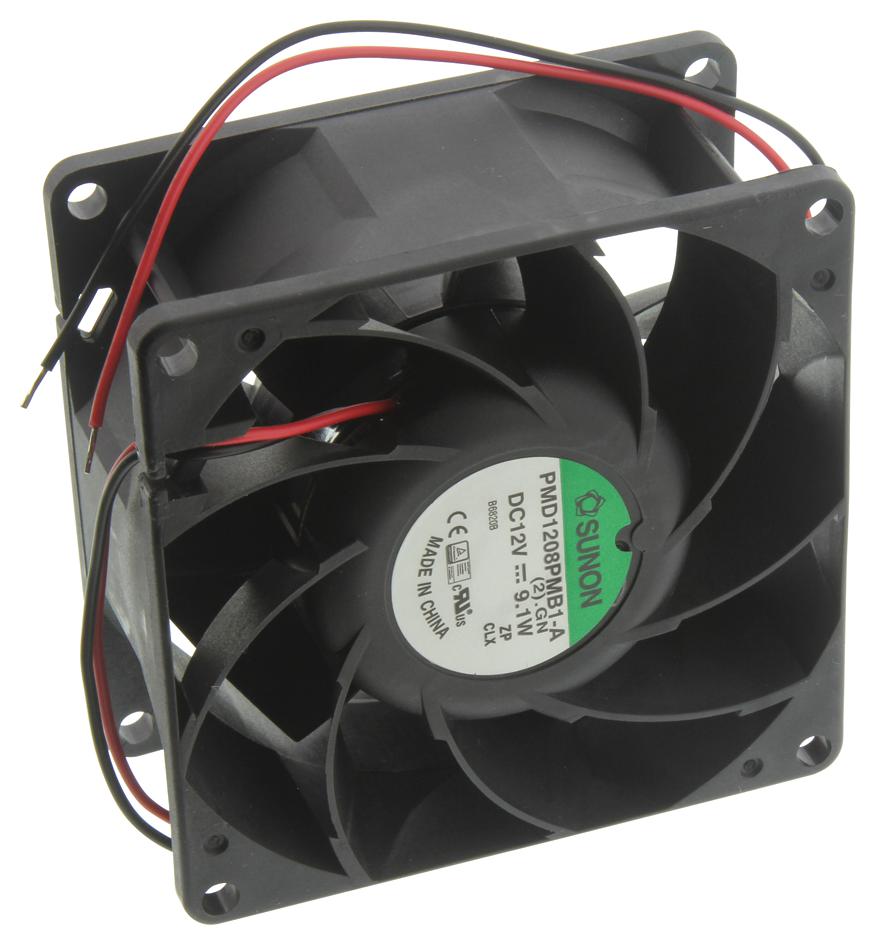

SUNON - PMD1208PMB1-A.(2).GN - DC Axial Fan, 12 V, Square, 80 mm, 38 mm, Ball Bearing, 84.1 CFM
- Supply Voltage: 12V
- Current Type: DC
- Fan Frame Size: 80mm
- External Depth: 38mm
- Noise Rating: 55.2dBA
- Flow Rate - Imperial: 84.1cu.ft/min
- Flow Rate - Metric: 2.381m³/min
- Bearing Type: Ball
- Power Connection Type: 2 Lead Wires
- Current Rating: 760mA
- Product Range: PMD Series
- Power Rating: -
- IP Rating: -
- SVHC: No SVHC (15-Jan-2019)
- Approval Bodies: CE, TUV, UL
- Case Material: PBT Plastic
- Current Consumption: 0.76A
- External Height: 80mm
- External Width: 80mm
- Frame Dimensions: 80mm x 80mm x 38mm
- Lead Length: 300mm
- Power Consumption: 9.1W
- Speed Range Max: 5700rpm
