PMST3904,115 Trans NPN 40V 0.2A SOT323 NEXPERIA

NEXPERIAUGS :PMST3904,115 Code de commande:1758030

Prix:
Prix ​​promotionnel€0,18

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (79737 unité)

Documents et téléchargements

description

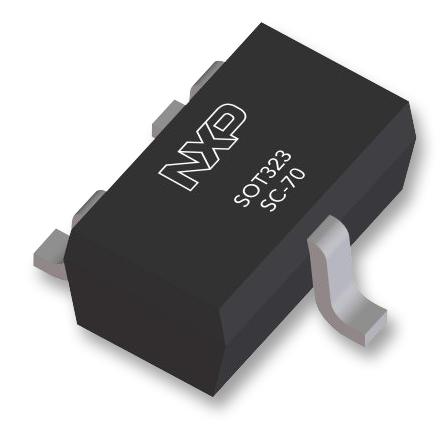

NEXPERIA - PMST3904,115 - Bipolar (BJT) Single Transistor, Switching, NPN, 40 V, 200 mA, 200 mW, SOT-323, Surface Mount

  • Transistor Polarity: NPN
  • Collector Emitter Voltage V(br)ceo: 40V
  • Transition Frequency ft: 300MHz
  • Power Dissipation Pd: 200mW
  • DC Collector Current: 200mA
  • DC Current Gain hFE: 100hFE
  • Transistor Case Style: SOT-323
  • No. of Pins: 3Pins
  • Operating Temperature Max: 150°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: MSL 1 - Unlimited
  • SVHC: No SVHC (15-Jan-2018)
  • Collector Emitter Saturation Voltage Vce(on): 200mV
  • Current Ic Continuous a Max: 200mA
  • Gain Bandwidth ft Typ: 300MHz
  • Hfe Min: 100
  • Operating Temperature Min: -65°C
  • Operating Temperature Range: -65°C to +150°C
  • Termination Type: Surface Mount Device
  • Transistor Type: Switching
