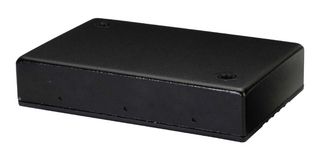

PRQ200W-Q48-S48-D - Isolated Through Hole DC/DC Converter, ITE, 4:1, 200 W, 1 Output, 48 V, 4.2 A - CUI

CUIUGS :PRQ200W-Q48-S48-D Code de commande:3873075

Prix:
Prix ​​promotionnel€198,76

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (24 unité)

Documenten en downloads

description

  • DC / DC Converter Output Type: Fixed, Adjustable
  • DC / DC Converter Type: Quarter Brick
  • Depth: 61.8mm
  • Height: 12.7mm
  • Input Ratio: 4:1
  • Input Voltage DC Max: 75V
  • Input Voltage DC Min: 18V
  • Input Voltage DC Nom: 48V
  • Isolation Voltage: 2.25kV
  • No. of Outputs: 1 Output
  • Output Current - Output 1: 4.2A
  • Output Current - Output 2: -
  • Output Power Max: 200W
  • Output Regulation: Regulated
  • Output Voltage - Output 1: 48V
  • Output Voltage - Output 2: -
  • Power Supply Applications: ITE
  • Product Range: PRQ200W Series
  • Width: 40.2mm
