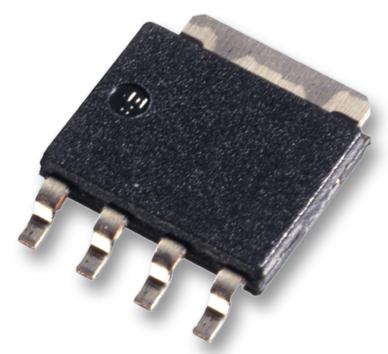

NEXPERIA - PSMN026-80YS,115 - Power MOSFET, N Channel, 80 V, 34 A, 0.02 ohm, SOT-669, Surface Mount
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 34A
- Drain Source Voltage Vds: 80V
- On Resistance Rds(on): 0.02ohm
- Rds(on) Test Voltage Vgs: 10V
- Threshold Voltage Vgs: 3V
- Power Dissipation Pd: 74W
- Transistor Case Style: SOT-669
- No. of Pins: 4Pins
- Operating Temperature Max: 175°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (15-Jan-2018)
- Current Id Max: 34A
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +175°C
- Voltage Vgs Max: 20V
