description

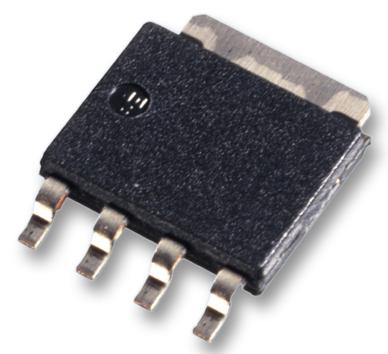

NEXPERIA - PSMN2R8-25MLC,115 - Power MOSFET, N Channel, 25 V, 70 A, 0.00245 ohm, SC-100, Surface Mount
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 70A
- Drain Source Voltage Vds: 25V
- On Resistance Rds(on): 0.00245ohm
- Rds(on) Test Voltage Vgs: 10V
- Threshold Voltage Vgs: 1.74V
- Power Dissipation Pd: 88W
- Transistor Case Style: SC-100
- No. of Pins: 4Pins
- Operating Temperature Max: 175°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +175°C
