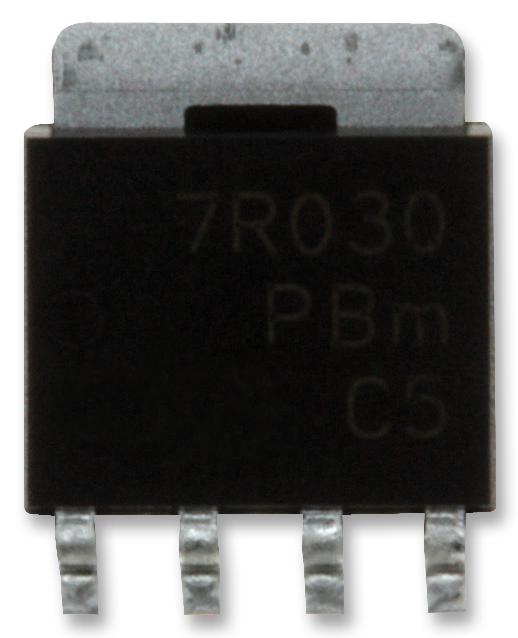

NEXPERIA - PSMN6R0-30YL,115 - Power MOSFET, N Channel, 30 V, 73 A, 0.00426 ohm, SOT-669, Surface Mount
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 73A
- Drain Source Voltage Vds: 30V
- On Resistance Rds(on): 0.00426ohm
- Rds(on) Test Voltage Vgs: 10V
- Threshold Voltage Vgs: 1.7V
- Power Dissipation Pd: 55W
- Transistor Case Style: SOT-669
- No. of Pins: 4Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- Current Id Max: 73A
- On State Resistance Max: 6mohm
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Termination Type: Surface Mount Device
- Voltage Vds Typ: 30V
- Voltage Vgs Max: 20V
- Voltage Vgs Rds on Measurement: 10V
