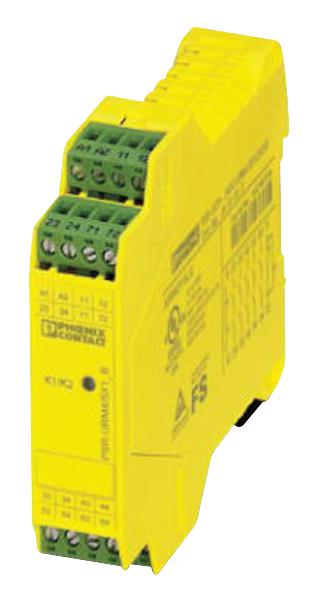

PHOENIX CONTACT - PSR-SCP-24UC/URM4/5X1/2X2/B - Safety Relay, 24 V, 5PST-NO, SPST-NC, PSR, DIN Rail, 6 A, Spring Clamp
- Coil Voltage: 24V
- Contact Configuration: 5PST-NO, SPST-NC
- Product Range: PSR Series
- Relay Mounting: DIN Rail
- Contact Current: 6A
- Relay Terminals: Spring Clamp
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Nom: 250V
- Contact Material: Silver Tin Oxide
- IP Rating: IP20, IP54
- SVHC: No SVHC (15-Jan-2018)
- Approvals / Standards: EN 61508, ISO 13849
- Coil Voltage VAC Nom: 24V
- Coil Voltage VDC Nom: 24V
- Contact Current Max: 6A
- External Depth: 114.5mm
- External Height: 99mm
- External Width: 22.5mm
- Input Current: 90mA
- Performance Level: PL e
- Safety Category: Level 4
- Safety Integrity Level: SIL CL3
