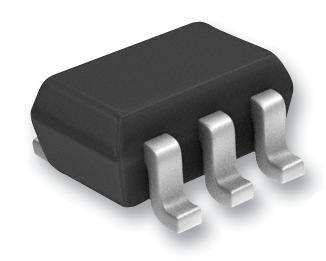

NEXPERIA - PUMB10,115 - Bipolar Pre-Biased / Digital Transistor, BRT, Dual PNP, 50 V, -100 mA, 2.2 kohm, 47 kohm
- Digital Transistor Polarity: Dual PNP
- Collector Emitter Voltage V(br)ceo: 50V
- Continuous Collector Current Ic: -100mA
- Base Input Resistor R1: 2.2kohm
- Base-Emitter Resistor R2: 47kohm
- Resistor Ratio, R1 / R2: -
- RF Transistor Case: SOT-363
- No. of Pins: 6 Pin
- Product Range: PUMB10 Series
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- Collector Emitter Saturation Voltage Vce(on): -100mV
- Continuous Collector Current Ic Max: 100A
- Current Ic Continuous a Max: 100A
- Current Ic hFE: 10mA
- DC Collector Current: -100mA
- DC Current Gain hFE: 100hFE
- Full Power Rating Temperature: 25°C
- Hfe Min: 100
- Module Configuration: Dual
- No. of Pins: 6Pins
- No. of Transistors: 2
- Operating Temperature Max: 150°C
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +150°C
- Power Dissipation Pd: 200mW
- Power Dissipation Ptot Max: 300mW
- Resistance R1: 2.7kohm
- Resistance R2: 47kohm
- Transistor Case Style: SOT-363
- Transistor Polarity: PNP
