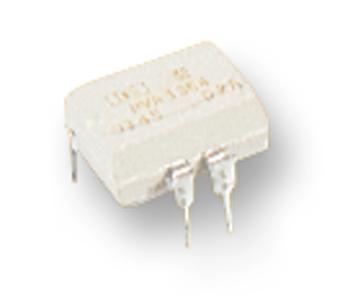

INFINEON - PVA2352NPBF - MOSFET Relay, 200 V, 150 mA, 24 ohm, SPST-NO
- Contact Configuration: SPST-NO
- Load Current: 150mA
- Relay Terminals: Through Hole
- Load Voltage Max: 200V
- On State Resistance Max: 24ohm
- Isolation Voltage: 4kV
- Forward Current If: 25mA
- Product Range: -
- SVHC: No SVHC (27-Jun-2018)
- Control Current Max: 25mA
- Control Current Typ: 5mA
- Control Voltage Type: DC
- Lead Spacing: 3mm
- Load Current @ Temp Max: 130mA
- Load Current Max: 150mA
- Load Current RMS Max: 150mA
- Load Current Temperature: 40°C
- Load Voltage Range: 0V to 200V
- No. of Pins: 8Pins
- Off State Resistance Min: 100Mohm
- On Resistance Rds(on): 24ohm
- On State AC Resistance @ temp: 24ohm
- On State Resistance DC @ temp: 24ohm
- On State Resistance Temperature: 25°C
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Peak Load Voltage +: 200V
- Peak Load Voltage -: 300V
- RMS Load Voltage Max: 4000V
- RMS Load Voltage Min: 0VAC
- Rate of Voltage Change dv / dt: 1000V/µs
- Response Time Off Max: 110µs
- Response Time On Max: 100µs
- Row Pitch: 10mm
- Thermal Offset Voltage Max: 0.2µV
