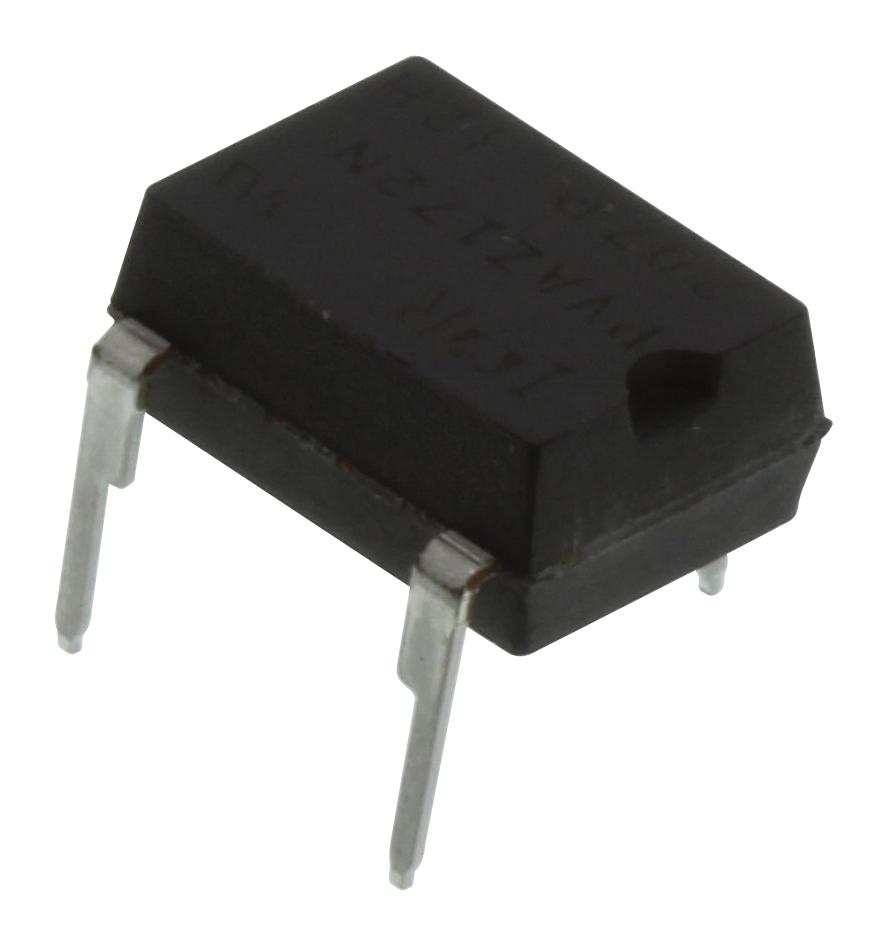

INFINEON - PVAZ172NPBF - MOSFET Relay, 60 VAC, 1 A, 0.5 ohm, SPST-NO
- Contact Configuration: SPST-NO
- Load Current: 1A
- Relay Terminals: Through Hole
- Load Voltage Max: 60VAC
- On State Resistance Max: 0.5ohm
- Isolation Voltage: 4kV
- Forward Current If: 25mA
- Product Range: -
- SVHC: No SVHC (27-Jun-2018)
- Base Number: 172
- Control Current Max: 25mA
- Control Current Typ: 0.4mA
- Control Voltage Type: DC
- Current Load AC Max: 1000mA
- Current Temperature: 40°C
- Dielectric Strength Voltage Vrms: 4000V
- Load Current DC Max: 1000mA
- Load Current RMS Max: 1A
- Load Voltage Range: 0V to 60V
- No. of Pins: 4Pins
- Nominal Control Current DC: 10mA
- Off State Resistance Min: 0.1Gohm
- On Resistance Rds(on): 500Mohm
- On State AC Resistance @ temp: 0.5ohm
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Voltage V(pk) Max: 60V
- Peak Load Voltage +: 60V
- Peak Load Voltage -: 60V
- RMS Load Voltage Max: 60VAC
- RMS Load Voltage Min: 0VAC
- Rate of Voltage Change dv / dt: 1000V/µs
- Resistance Temperature: 25°C
- Response Time Off Max: 500µs
- Turn Off Time: 0.5ms
