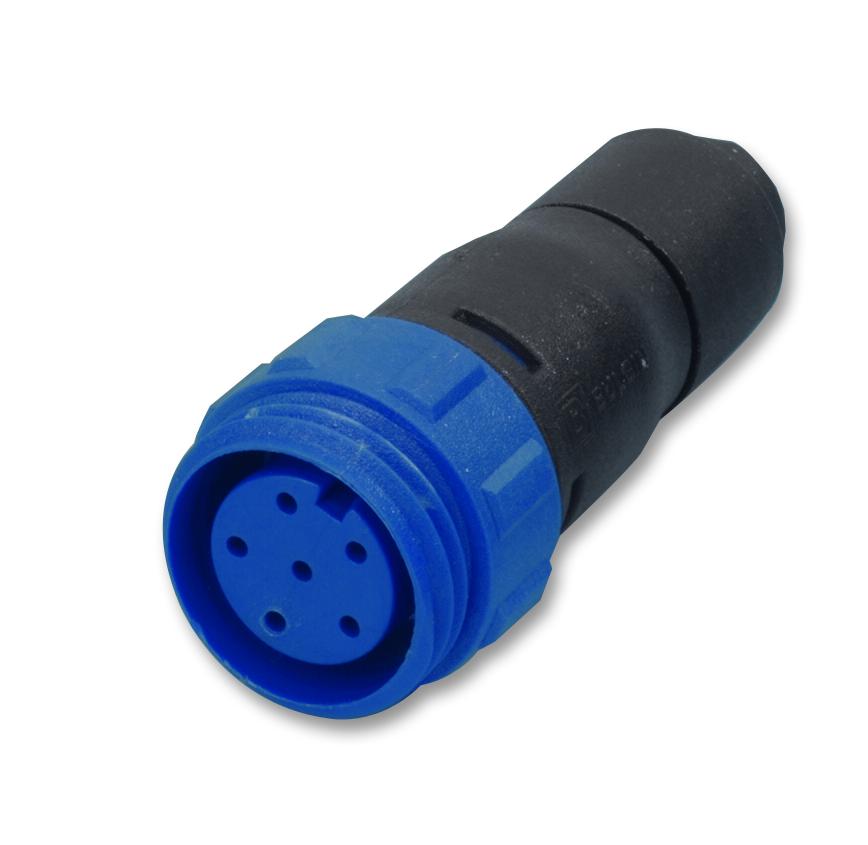

BULGIN LIMITED - PX0411/08S/6065 - Circular Connector, IP68, Inline, Buccaneer 400 Series, Cable Mount Receptacle, 8 Contacts
- Product Range: Buccaneer 400 Series
- Circular Connector Shell Style: Cable Mount Receptacle
- No. of Contacts: 8Contacts
- Circular Contact Type: Crimp / Solder Socket - Contacts Not Supplied
- Coupling Style: Threaded
- Connector Body Material: Nylon (Polyamide) Body
- Connector Body Plating: -
- Contact Material: -
- Contact Plating: -
- SVHC: No SVHC (27-Jun-2018)
- Cable Diameter Max: 7mm
- Cable Diameter Min: 3mm
- Connector Mounting: Cable Mount
- Connector Type: Circular Industrial
- Contact Gender: Socket
- Contact Resistance: 5mohm
- Current Rating: 5A
- Flammability Rating: UL94V-0
- Gender: Receptacle
- IP / NEMA Rating: IP68
- Insulation Resistance: 10Mohm
- No. of Positions: 8Ways
- O Ring Material: Nitrile
- Operating Temperature Max: 80°C
- Operating Temperature Min: -40°C
- Voltage Rating VAC: 125V
- Wire Size AWG Max: 22AWG
- Wire Size AWG Min: 26AWG
- Working Voltage: 125V
