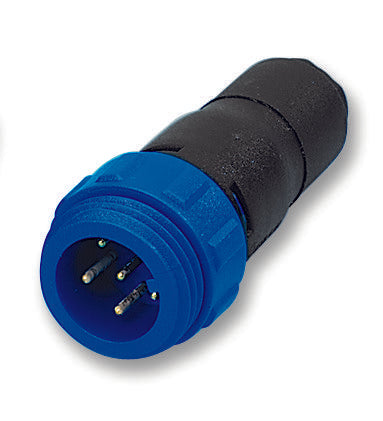

BULGIN LIMITED - PX0411/10P/6065 - Circular Connector, IP68, Inline, Buccaneer 400 Series, Cable Mount Plug, 10 Contacts
- Product Range: Buccaneer 400 Series
- Circular Connector Shell Style: Cable Mount Plug
- No. of Contacts: 10Contacts
- Circular Contact Type: Crimp / Solder Pin - Contacts Not Supplied
- Coupling Style: Threaded
- Connector Body Material: Nylon (Polyamide) Body
- Connector Body Plating: -
- Contact Material: -
- Contact Plating: -
- SVHC: No SVHC (27-Jun-2018)
- Cable Diameter Max: 7mm
- Cable Diameter Min: 3mm
- Connector Mounting: Cable Mount
- Connector Type: Circular Industrial
- Contact Gender: Pin
- Contact Resistance: 5mohm
- Current Rating: 1A
- Flammability Rating: UL94V-0
- Gender: Plug
- IP / NEMA Rating: IP68
- Insulation Resistance: 10Mohm
- No. of Positions: 10Ways
- O Ring Material: Nitrile
- Operating Temperature Max: 80°C
- Operating Temperature Min: -40°C
- Voltage Rating VAC: 50V
- Wire Size AWG Max: 24AWG
- Wire Size AWG Min: 28AWG
- Working Voltage: 50V
