PX0412/06P Circular Connector, Plug, 6 Way, Panel Bulgin Limited

BULGIN LIMITEDUGS :PX0412/06P Code de commande:3841157

Prix:
Prix ​​promotionnel€17,04

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (322 unité)

Documents et téléchargements

description

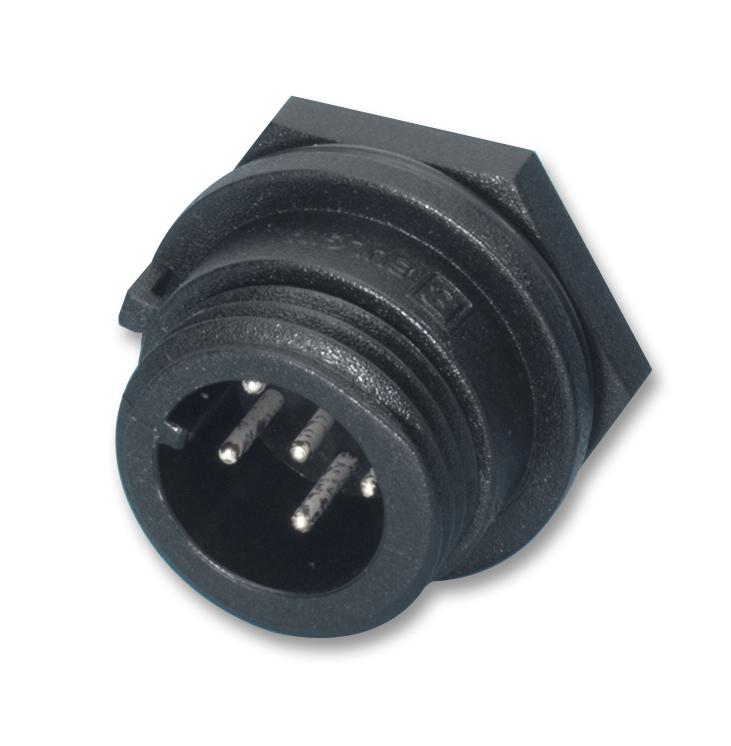

BULGIN LIMITED - PX0412/06P - Circular Connector, IP68, Front Mount, Buccaneer 400 Series, Panel Mount Plug, 6 Contacts

  • Product Range: Buccaneer 400 Series
  • Circular Connector Shell Style: Panel Mount Plug
  • No. of Contacts: 6Contacts
  • Circular Contact Type: Crimp / Solder Pin - Contacts Not Supplied
  • Coupling Style: Threaded
  • Connector Body Material: Nylon (Polyamide) Body
  • Connector Body Plating: -
  • Contact Material: -
  • Contact Plating: -
  • SVHC: No SVHC (27-Jun-2018)
  • Cable Diameter Max: 7mm
  • Cable Diameter Min: 3mm
  • Connector Mounting: Panel Mount
  • Connector Type: Circular Industrial
  • Contact Gender: Pin
  • Contact Resistance: 5mohm
  • Current Rating: 5A
  • Flammability Rating: UL94V-0
  • Gender: Plug
  • IP / NEMA Rating: IP68
  • No. of Positions: 6Ways
  • O Ring Material: Nitrile
  • Operating Temperature Max: 80°C
  • Operating Temperature Min: -40°C
  • Wire Size AWG Max: 22AWG
  • Wire Size AWG Min: 26AWG
  • Working Voltage: 125V
