description

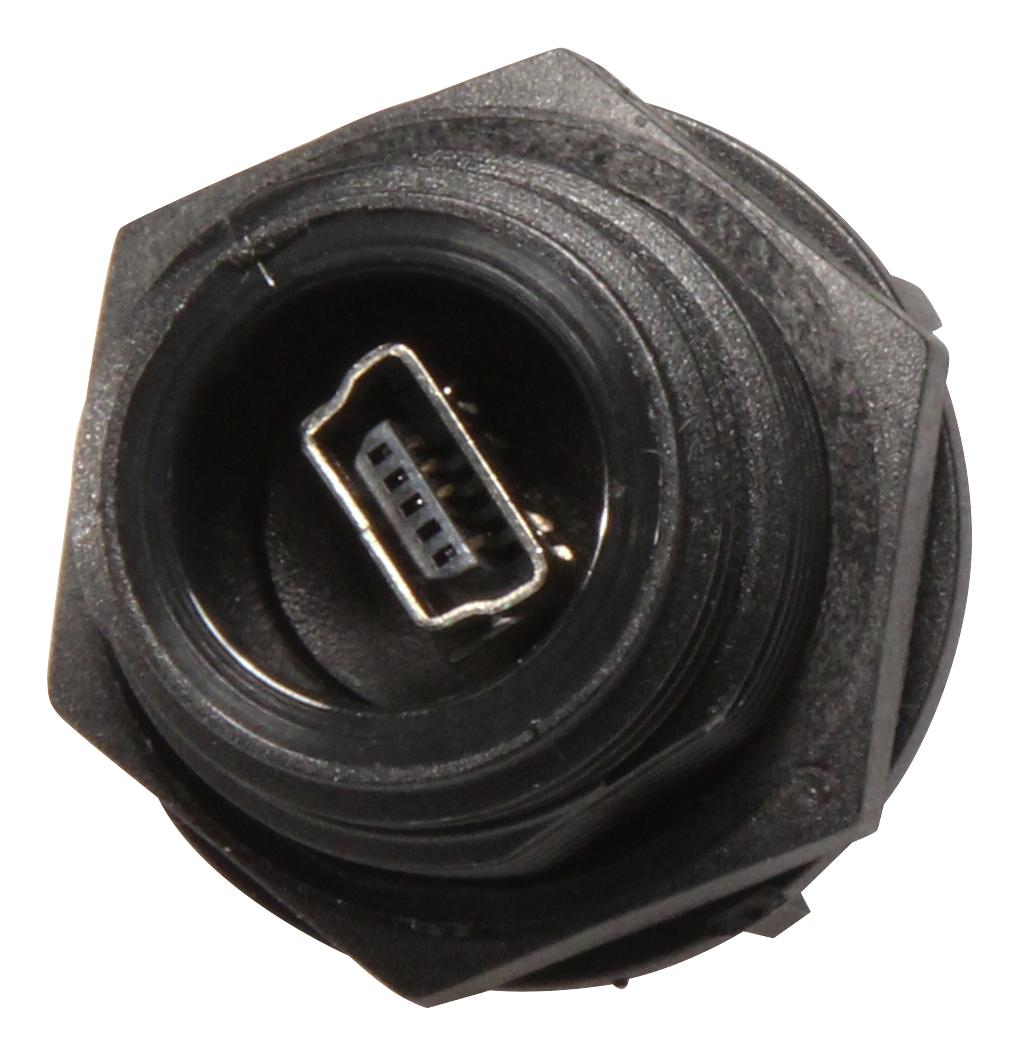

BULGIN LIMITED - PX0447 - USB Sealed Connector, Mini USB Type B, USB 2.0, Receptacle, 5 Position, Through Hole Mount
- USB Connector Type: Mini USB Type B
- USB Standard: USB 2.0
- Gender: Receptacle
- No. of Positions: 5 Position
- Connector Mounting: Through Hole Mount
- IP Rating: IP68, IP69K
- Product Range: -
- Contact Material: Copper Alloy
- Contact Plating: Gold Plated Contacts
- SVHC: No SVHC (27-Jun-2018)
- Connector Mounting Orientation: Panel
- Connector Type: Mini USB Type B
- Contact Termination: Through Hole Vertical
- Contact Termination Type: Through Hole
- Current Rating: 1A
- Flammability Rating: UL94V-0
- IP / NEMA Rating: IP68, IP69K
- No. of Contacts: 5Contacts
- No. of Mating Cycles: 5000
- No. of Positions: 5Ways
- Operating Temperature Max: +70°C
- Operating Temperature Min: -20°C
- Standard: USB V2.0
- Voltage Rating VAC: 30V
