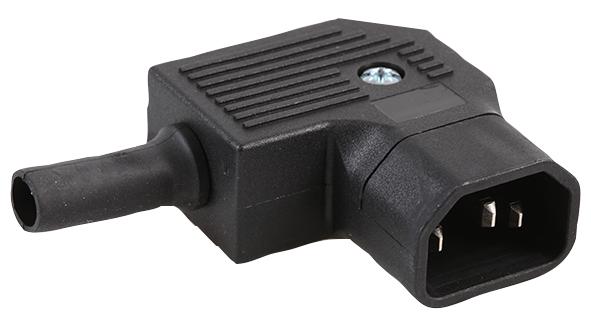

PX0686/Se Plug, IEC, Right Angle, Free Bulgin Limited

BULGIN LIMITEDUGS :PX0686/SE Code de commande:9997288

Prix:
Prix ​​promotionnel€13,48

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1522 unité)

Documents et téléchargements

description

BULGIN LIMITED - PX0686/SE - IEC Power Connector, IEC C14 Plug, 10 A, 250 VAC, Screw, Cable Mount, PX0686

  • Product Range: PX0686
  • Gender: Plug
  • Voltage Rating: 250VAC
  • Current Rating: 10A
  • Connector Mounting: Cable Mount
  • Contact Termination Type: Screw
  • SVHC: No SVHC (27-Jun-2018)
  • Approval Category: CSA, IMQ, SEMKO, UL, VDE
  • Cable Diameter Max: 7.6mm
  • Contact Resistance: 10mohm
  • Contact Termination: Screw
  • External Depth: 51.7mm
  • External Length / Height: 22.6mm
  • External Width: 72.1mm
  • Flammability Rating: UL94V-0
  • Fuse Current: 10A
  • Insulation Resistance: 10Mohm
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -40°C
  • Termination Method: Screw
  • Voltage Rating VAC: 250V
