description

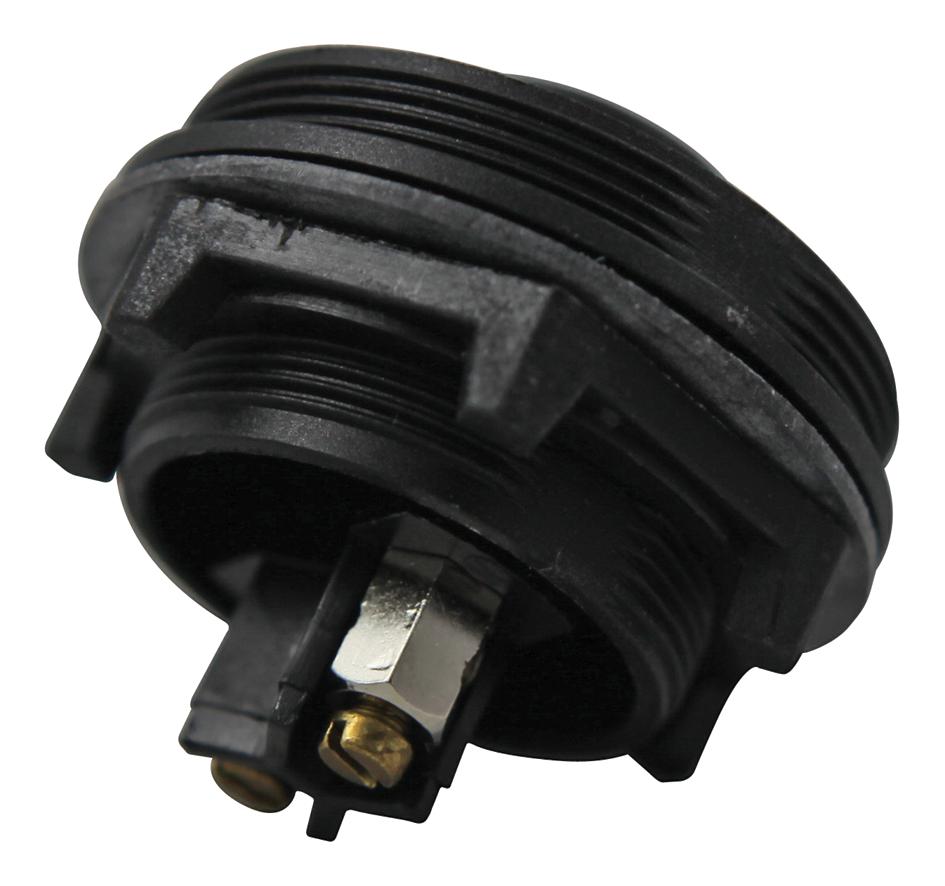

BULGIN LIMITED - PX0735/S - Circular Connector, Buccaneer Standard Series, Panel Mount Receptacle, 2 Contacts, Screw Socket
- Product Range: Buccaneer Standard Series
- Circular Connector Shell Style: Panel Mount Receptacle
- No. of Contacts: 2Contacts
- Circular Contact Type: Screw Socket
- Coupling Style: Threaded
- Connector Body Material: Nylon (Polyamide), Glass Filled Body
- Connector Body Plating: -
- Contact Material: Brass
- Contact Plating: Nickel
- SVHC: No SVHC (27-Jun-2018)
- Cable Diameter Max: 8mm
- Cable Diameter Min: 6mm
- Colour: Black
- Connector Mounting: Panel Mount
- Connector Type: Circular Industrial
- Contact Gender: Socket
- Contact Plating: Nickel Plated Contacts
- Contact Termination: Screw
- Contact Termination Type: Screw
- Current Rating: 10A
- Flammability Rating: UL94HB
- Gender: Receptacle
- IP / NEMA Rating: IP68
- Operating Temperature Max: 70°C
- Operating Temperature Min: -20°C
- Voltage Rating V DC: 277V
- Voltage Rating VAC: 277V
