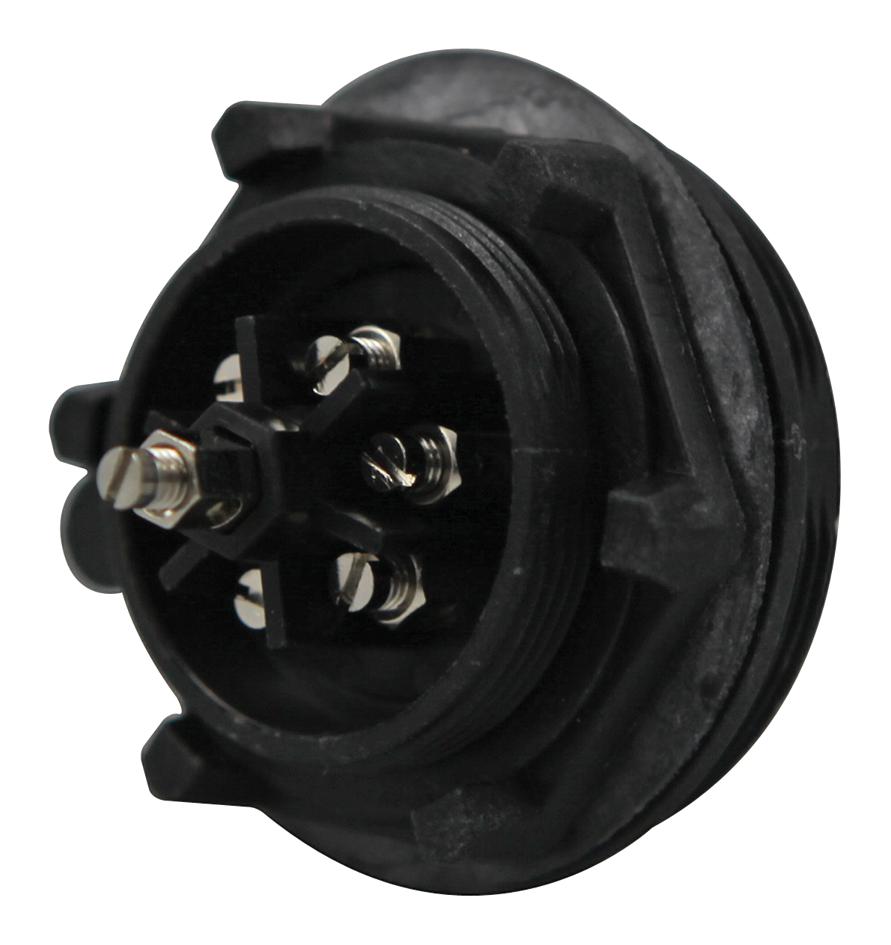

PX0744/S Socket, Panel, 7 Pole Bulgin Limited

BULGIN LIMITEDUGS :PX0744/S Code de commande:626028

Prix:
Prix ​​promotionnel€34,58

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (248 unité)

Documents et téléchargements

description

BULGIN LIMITED - PX0744/S - Circular Connector, Buccaneer Standard Series, Panel Mount Receptacle, 7 Contacts, Screw Socket

  • Product Range: Buccaneer Standard Series
  • Circular Connector Shell Style: Panel Mount Receptacle
  • No. of Contacts: 7Contacts
  • Circular Contact Type: Screw Socket
  • Coupling Style: Threaded
  • Connector Body Material: Nylon (Polyamide), Glass Filled Body
  • Connector Body Plating: -
  • Contact Material: Brass
  • Contact Plating: Nickel
  • SVHC: No SVHC (27-Jun-2018)
  • Cable Diameter Max: 8.1mm
  • Colour: Black
  • Connector Mounting: Panel Mount
  • Connector Type: Circular Industrial
  • Contact Gender: Socket
  • Contact Plating: Nickel Plated Contacts
  • Contact Resistance Max: 10mohm
  • Contact Termination: Screw
  • Contact Termination Type: Screw
  • Current Rating: 3A
  • External Diameter: 38.1mm
  • External Length / Height: 28mm
  • Flammability Rating: UL94V-0
  • Gender: Receptacle
  • IP / NEMA Rating: IP68
  • Insulation Resistance: 100Mohm
  • Moulding Material: Glass Filled Nylon
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -20°C
  • Panel Thickness Max: 6.4mm
  • Panel Thickness Min: 0.8mm
  • Voltage Rating V DC: 250V
