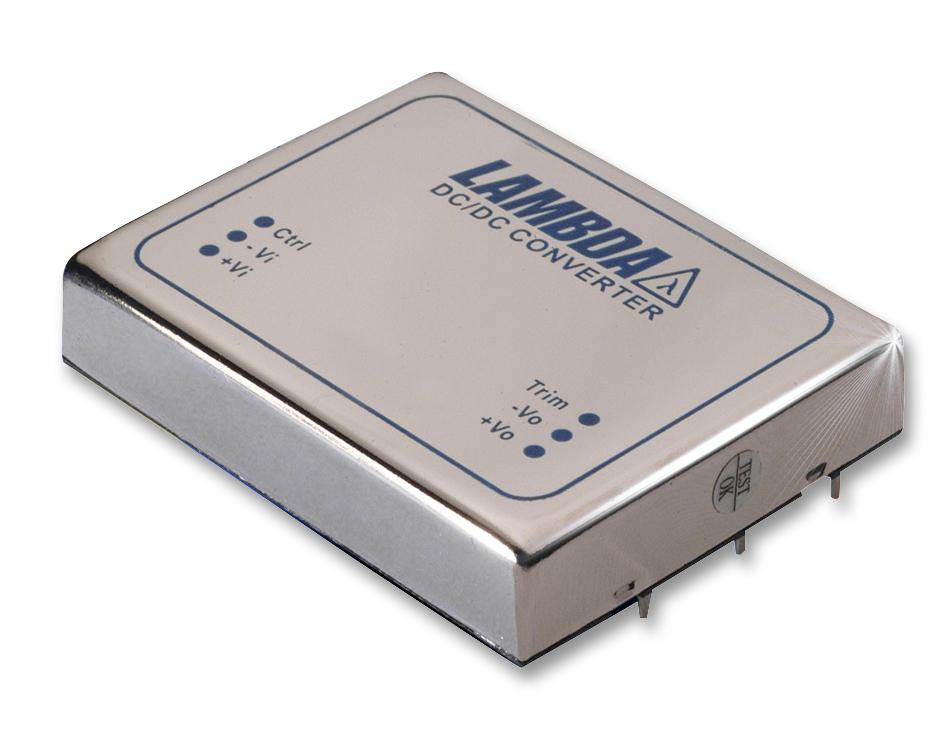

TDK-LAMBDA - PXE20-24WS-05 - Isolated Through Hole DC/DC Converter, ITE, 4:1, 20 W, 1 Output, 5 V, 4 A
- No. of Outputs: 1 Output
- Output Power Max: 20W
- Output Voltage - Output 1: 5V
- Output Current - Output 1: 4A
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Product Range: PXE Series
- Input Voltage DC Min: 9V
- Input Voltage DC Max: 36V
- DC / DC Converter Output Type: Fixed, Adjustable
- DC / DC Converter Type: DIP
- DC / DC Converter Mounting: Through Hole
- Width: 40.6mm
- Height: 10.2mm
- Depth: 50.8mm
- SVHC: No SVHC (15-Jan-2018)
- Approval Bodies: CE, CSA, EN, UL
- Approvals & Standards: CE, CSA, UL
- Efficiency: 79%
- Isolation Voltage: 1.6kV
- No. of Outputs: 1Outputs
- Output Power (Pout): 20W
- Power Rating: 20W
- Supply Voltage: 24V
