PZT2222AT1G Transistor, NPN, Sot-223 ONSEMI

ONSEMIUGS :PZT2222AT1G Code de commande:1459167

Prix:
Prix ​​promotionnel€1,06

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (53567 unité)

Documents et téléchargements

description

ONSEMI - PZT2222AT1G - Bipolar (BJT) Single Transistor, General Purpose, NPN, 40 V, 600 mA, 1.5 W, SOT-223, Surface Mount

  • Transistor Polarity: NPN
  • Collector Emitter Voltage V(br)ceo: 40V
  • Transition Frequency ft: 300MHz
  • Power Dissipation Pd: 1.5W
  • DC Collector Current: 600mA
  • DC Current Gain hFE: 300hFE

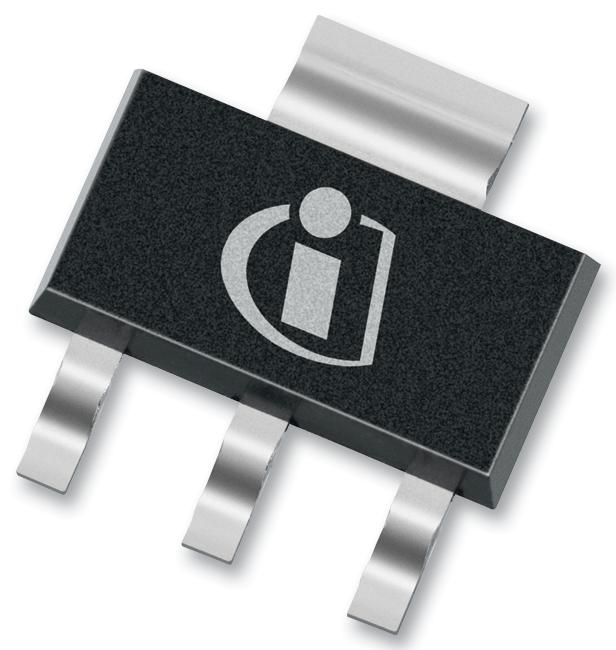

  • Transistor Case Style: SOT-223
  • No. of Pins: 4Pins
  • Operating Temperature Max: 150°C
  • Product Range: -
  • Automotive Qualification Standard: AEC-Q101
  • MSL: MSL 1 - Unlimited
  • SVHC: No SVHC (27-Jun-2018)
  • Collector Emitter Saturation Voltage Vce(on): 300mV
  • Complementary Device: PZT2907AT1
  • Continuous Collector Current Ic Max: 600mA
  • Current Ic Continuous a Max: 500mA
  • Current Ic hFE: 10mA
  • Gain Bandwidth ft Typ: 300MHz
  • Hfe Min: 35
  • Pin Configuration: B(1), C(2+4), E(3)
  • Power Dissipation Ptot Max: 1.5W
  • Termination Type: Surface Mount Device
  • Voltage Vcbo: 75V
