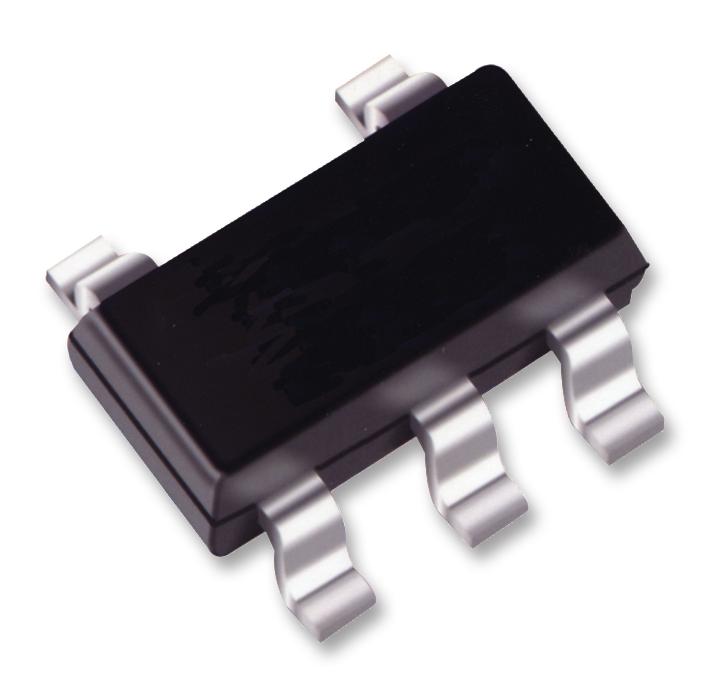

ROHM - QS5U27TR - Power MOSFET, P Channel, 20 V, 1.5 A, 0.34 ohm, TSMT, Surface Mount
- Transistor Polarity: P Channel
- Continuous Drain Current Id: 1.5A
- Drain Source Voltage Vds: -20V
- On Resistance Rds(on): 0.34ohm
- Rds(on) Test Voltage Vgs: -4.5V
- Threshold Voltage Vgs: -2V
- Power Dissipation Pd: 900mW
- Transistor Case Style: TSMT
- No. of Pins: 5Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (15-Jan-2018)
- Capacitance Ciss Typ: 325pF
- Fall Time tf: 10ns
- Pin Configuration: 1(G),2(S),3(A),4(K),5(D)
- Pulse Current Idm: 6A
- Rise Time: 10ns
- Termination Type: Surface Mount Device
- Transistor Type: Protected MOSFET
- Voltage Vds Typ: -20V
- Voltage Vgs Rds on Measurement: 2.5V
- Voltage Vgs th Max: -2V
- Voltage Vgs th Min: -0.7V
