QTE-020-02-L-D-A Header, Dual, 40WAY Samtec

SAMTECUGS :QTE-020-02-L-D-A Code de commande:1667883

Prix:
Prix ​​promotionnel€10,40

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (16 unité)

Documents et téléchargements

description

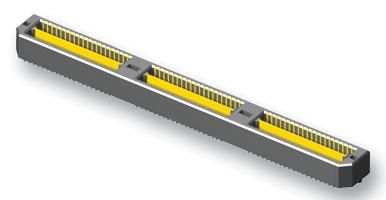

SAMTEC - QTE-020-02-L-D-A - Mezzanine Connector, High-Speed Ground Plane, Header, 0.8 mm, 2 Rows, 40 Contacts, Surface Mount

  • Product Range: QTE Series
  • No. of Contacts: 40Contacts
  • Gender: Header
  • Pitch Spacing: 0.8mm
  • Contact Termination Type: Surface Mount
  • No. of Rows: 2Rows
  • Row Pitch: 3.94mm
  • Contact Plating: Gold Plated Contacts
  • Contact Material: Phosphor Bronze
  • SVHC: No SVHC (15-Jan-2018)
  • Contact Termination: Solder
  • Current Rating: 2A
  • Lead Spacing: 0.8mm
  • No. of Mating Cycles: 100
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -55°C
  • Voltage Rating VAC: 225V
