description

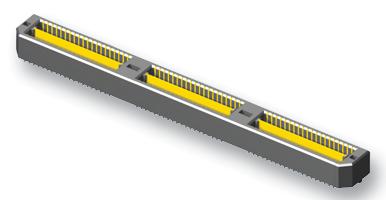

SAMTEC - QTE-040-03-L-D-A - Mezzanine Connector, High-Speed Ground Plane, Header, 0.8 mm, 2 Rows, 80 Contacts, Surface Mount
- Product Range: QTE Series
- No. of Contacts: 80Contacts
- Gender: Header
- Pitch Spacing: 0.8mm
- Contact Termination Type: Surface Mount
- No. of Rows: 2Rows
- Row Pitch: 3.94mm
- Contact Plating: Gold Plated Contacts
- Contact Material: Phosphor Bronze
- SVHC: No SVHC (15-Jan-2018)
- Contact Termination: Solder
- Current Rating: 2A
- Lead Spacing: 0.8mm
- No. of Mating Cycles: 100
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Voltage Rating VAC: 225V
