QVR-230 Power Controller, Enclosed United Automation

UNITED AUTOMATIONUGS :QVR-230 Code de commande:1216279

Prix:
Prix ​​promotionnel€82,12

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (10 unité)

Documents et téléchargements

description

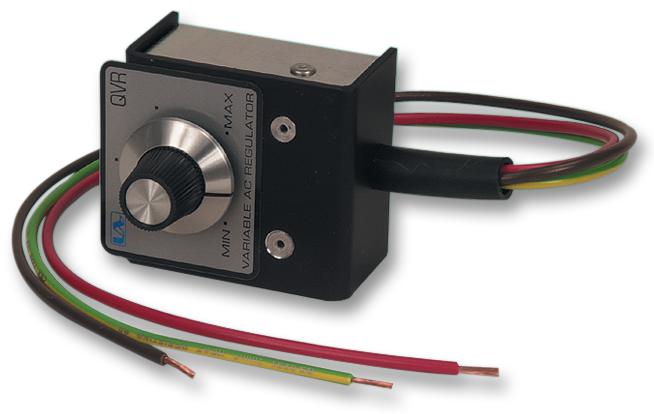

UNITED AUTOMATION - QVR-230 - Power Regulator, Phase Angle, 15 A, 230 VAC, 60 Hz, 70 °C

  • On State Current Max: 15A
  • Supply Voltage Min: 110VAC
  • Supply Voltage Max: 230VAC
  • Isolation Voltage: 2.5kV
  • Supply Frequency: 60Hz
  • Operating Temperature Min: -
  • Operating Temperature Max: 70°C
  • Product Range: -
  • SVHC: No SVHC (20-Jun-2016)
  • Approval Bodies: CE
  • External Depth: 32mm
  • External Length / Height: 58mm
  • External Width: 54mm
  • Fixing Hole Diameter: 10mm
  • For Use With: Quartz Lamps or Conventional Resistive Heating Elements, Inductive Loads
  • Output Voltage Max: 235V
  • RMS Current (Irms): 25A
  • Supply Frequency Max: 55Hz
  • Supply Frequency Min: 45Hz
  • Supply Voltage AC Max: 264V
  • Supply Voltage AC Min: 216V
  • Supply Voltage Range: 110V AC to 230V AC
  • Surge Current: 320A
