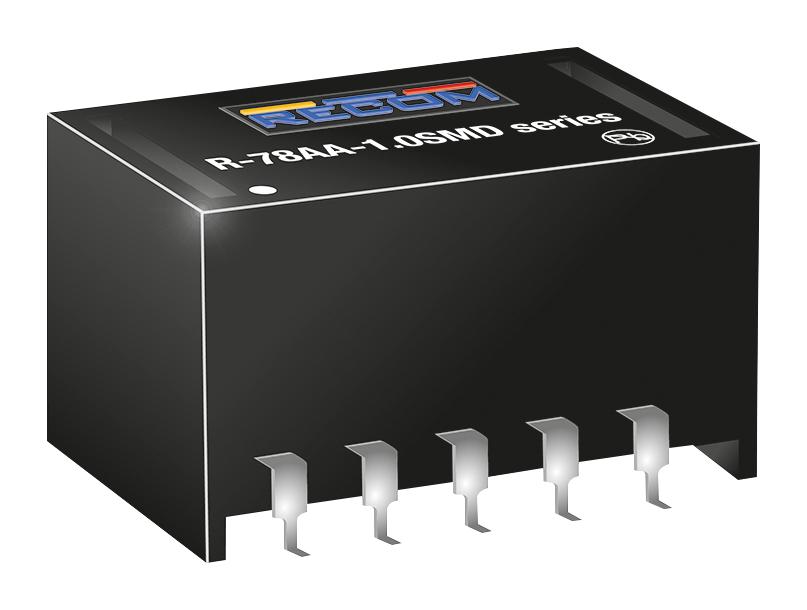

R-78AA3.3-1.0SMD Converter, DC/DC, 1A, 3.3V, SMD RECOM Power

RECOM POWERUGS :R-78AA3.3-1.0SMD Code de commande:1793149

Prix:
Prix ​​promotionnel€15,65

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
Rupture de stock

Documents et téléchargements

description

RECOM POWER - R-78AA3.3-1.0SMD - Non Isolated POL DC/DC Converter, ITE, 5.5 W, 3 V, 5.5 V, 1 A, Adjustable

  • Output Power Max: 5.5W
  • Output Voltage Min: 3V
  • Output Voltage Max: 5.5V
  • Output Current Max: 1A
  • DC / DC Converter Output Type: Adjustable
  • DC / DC Converter Type: Surface Mount DIP
  • Input Voltage DC Min: 4.75V
  • Input Voltage DC Max: 18V
  • Height: 8.8mm
  • Depth: 15.3mm
  • Width: 9.6mm
  • Product Range: R-78AA-1.0 Series
  • SVHC: No SVHC (15-Jan-2019)
  • Approval Bodies: UL
  • Approvals & Standards: UL
  • Efficiency Max: 97%
  • External Depth: 9.6mm
  • External Length / Height: 15.3mm
  • External Width: 8.8mm
  • Input Voltage Max: 32V
  • Input Voltage Min: 4.75V
  • No. of Outputs: 1Outputs
  • Operating Temperature Max: +85°C
  • Operating Temperature Min: -40°C
  • Output Current: 1A
  • Output Voltage: 3.3V
