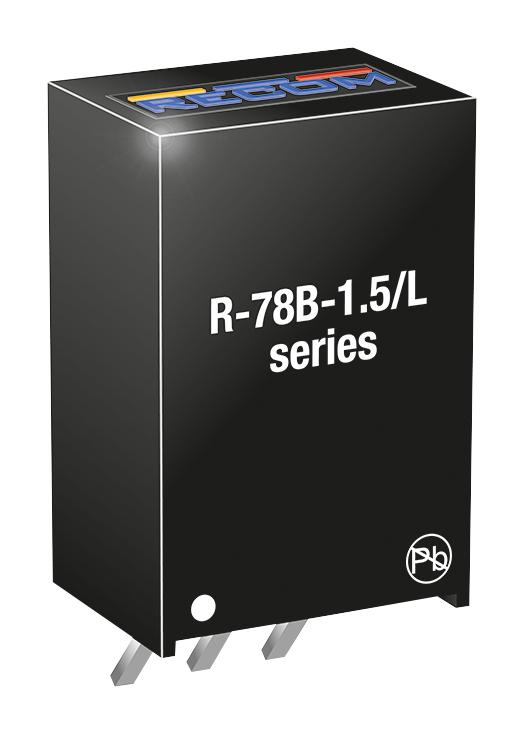

RECOM POWER - R-78B5.0-1.5 - DC/DC Converter, ITE, 1 Output, 7.5 W, 5 V, 1.5 A, R-78B Series
- No. of Outputs: 1 Output
- Output Power Max: 7.5W
- Output Voltage Nom.: 5V
- Output Current Max: 1.5A
- DC / DC Converter Output Type: Fixed
- DC / DC Converter Mounting: Through Hole
- Input Voltage DC Min: 6.5V
- Input Voltage DC Max: 18V
- DC / DC Converter Type: SIP
- Depth: 11.5mm
- Width: 8.5mm
- Height: 17.5mm
- Product Range: R-78B-1.5 Series
- SVHC: No SVHC (15-Jan-2019)
- Efficiency Max: 95%
- External Depth: 17.5mm
- External Length / Height: 11.5mm
- External Width: 8.5mm
- Input Voltage Max: 18V
- Input Voltage Min: 6.5V
- No. of Outputs: 1Outputs
- Operating Temperature Max: +85°C
- Operating Temperature Min: -40°C
- Output Current: 1.5A
