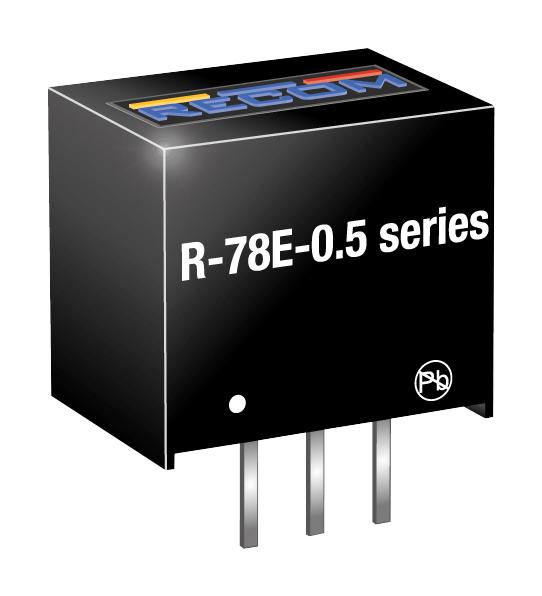

RECOM POWER - R-78E12-0.5 - DC/DC Converter, ITE, 1 Output, 6 W, 12 V, 500 mA, R-78E Series
- No. of Outputs: 1 Output
- Output Power Max: 6W
- Output Voltage Nom.: 12V
- Output Current Max: 500mA
- DC / DC Converter Output Type: Fixed
- DC / DC Converter Mounting: Through Hole
- Input Voltage DC Min: 15V
- Input Voltage DC Max: 28V
- DC / DC Converter Type: SIP
- Depth: 11.6mm
- Width: 8.5mm
- Height: 10.4mm
- Product Range: R-78E Series
- SVHC: No SVHC (15-Jan-2019)
- Approvals & Standards: IEC
