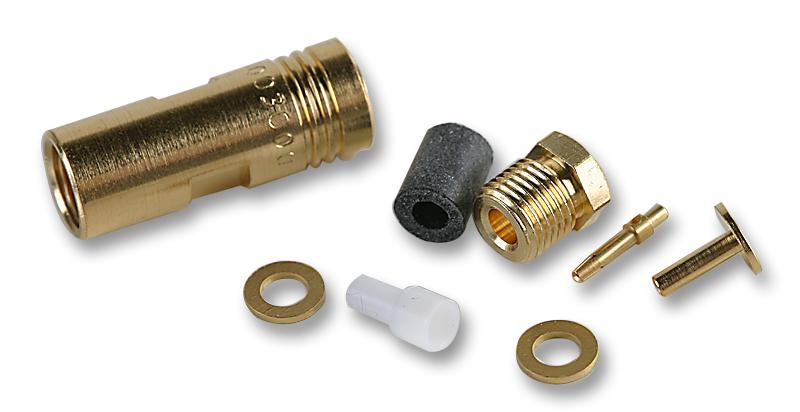

RADIALL - R114003000 - RF / Coaxial Connector, SMB Coaxial, Straight Plug, Solder, 50 ohm, RG178, RG178LC, RG196
- Connector Type: SMB Coaxial
- Connector Body Style: Straight Plug
- Coaxial Termination: Solder
- Impedance: 50ohm
- Coaxial Cable Types: RG178, RG178LC, RG196
- Contact Material: Beryllium Copper
- Contact Plating: Gold Plated Contacts
- Frequency Max: 4GHz
- Connector Mounting: Cable Mount
- Product Range: -
- SVHC: No SVHC (15-Jan-2018)
- Body Plating: Gold
- Coaxial Type: RG178 B/U, RG196 A/U, URM110, KX21 A
- Connector Mounting Orientation: Cable
- Insulation Resistance: 1000Mohm
- Material: Brass
- No. of Mating Cycles: 500
- Operating Frequency Max: 4GHz
- Operating Temperature Max: 165°C
- Operating Temperature Min: -65°C
- Termination Method: Clamp
- Voltage Rating VAC: 250V
