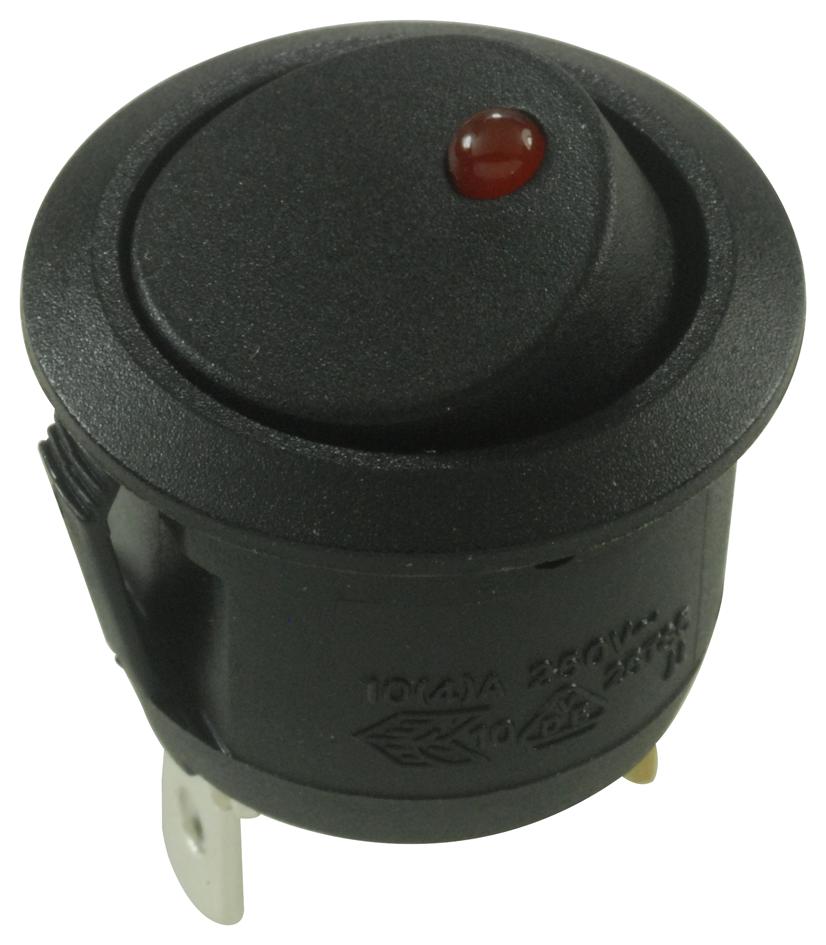

MULTICOMP PRO - R13-112B9-02-BBR-0A - Rocker Switch, On-Off, SPST, Illuminated, Panel Mount, Black, R13
- Illumination: Illuminated
- Contact Configuration: SPST
- Switch Operation: On-Off
- Actuator / Cap Colour: Black
- Switch Mounting: Panel
- Contact Current Max: 10A
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Nom: 999V
- Product Range: R13 Series
- Approval Bodies: CQC, CNS, CSA, DEMKO, ENEC, FIMKO, NEMKO, SEMKO, TUV, VDE
- Approval Category: UL Recognised
- Bezel Diameter: 23.5mm
- Bezel Height: 2mm
- Colour: Black
- Contact Current AC: 10A
- Contact Current AC Max: 10A
- Contact Resistance: 50mohm
- Contact Voltage AC Max: 250VAC
- Height: 15.8mm
- Height Max: 26.3mm
- Illumination Colour: Red
- Insulation Resistance: 100Mohm
- Insulation Resistance Voltage: 500VDC
- Operating Temperature Max: 65°C
- Operating Temperature Min: -20°C
- Panel Cutout Diameter: 20.2mm
- Panel Thickness Max: 3mm
