R141075161 RF Coaxial, BNC, Straight Plug, 50ohm RADIALL

RADIALLUGS :R141075161 Code de commande:4194986

Prix:
Prix ​​promotionnel€15,50

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (576 unité)

Documents et téléchargements

description

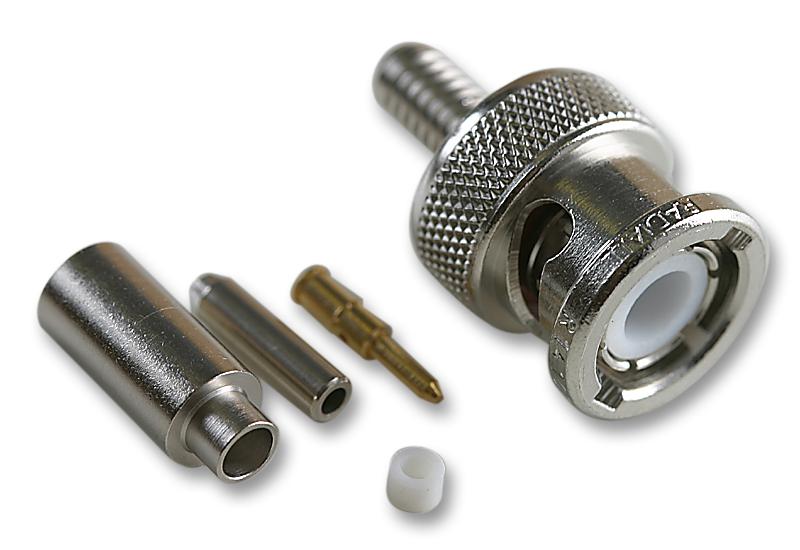

RADIALL - R141075161 - RF / Coaxial Connector, BNC Coaxial, Straight Plug, Crimp, 50 ohm, RG188, RG316, Brass

  • Connector Type: BNC Coaxial
  • Connector Body Style: Straight Plug
  • Coaxial Termination: Crimp
  • Impedance: 50ohm
  • Coaxial Cable Types: RG188, RG316
  • Contact Material: Brass
  • Contact Plating: Gold Plated Contacts
  • Frequency Max: 1.5GHz
  • Connector Mounting: Cable Mount
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2018)
  • Body Plating: Nickel
  • Coaxial Type: RG174A/U, RG142, RG188A/U, RG316/U, URM95, URM109, URM116, KX3B, KX22A
  • Connector Mounting Orientation: Cable
  • Insulation Resistance: 5000Mohm
  • Material: Brass
  • No. of Mating Cycles: 100
  • Operating Frequency Max: 1.5GHz
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -25°C
  • Termination Method: Crimp
  • Voltage Rating VAC: 500V
  • Withstand Voltage: 1500V
