R141720000 ADAPTOR, BNC JACK, BNC JACK, 50OHM RADIALL

RADIALLUGS :R141720000 Code de commande:4195280

Prix:
Prix ​​promotionnel€24,86

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (104 unité)

Documents et téléchargements

description

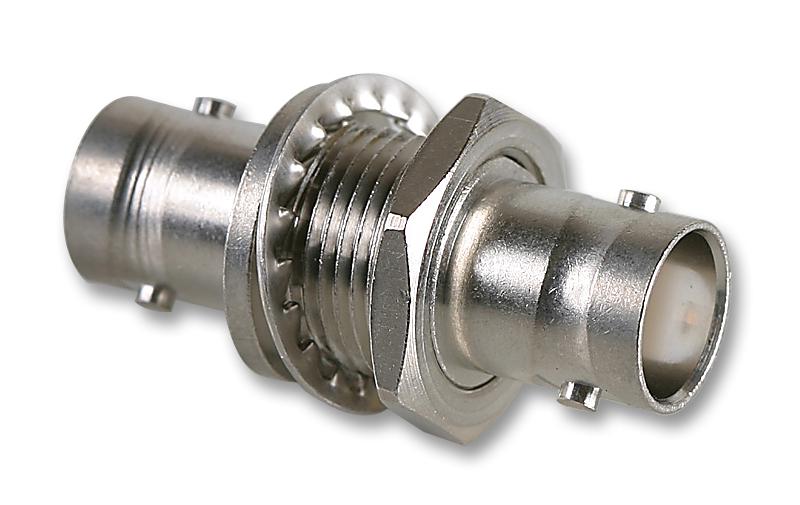

RADIALL - R141720000 - RF / Coaxial Adapter, BNC, Jack, BNC, Jack, Straight Bulkhead Adapter, 50 ohm

  • Convert From Coax Type: BNC
  • Convert From Gender: Jack
  • Convert To Coax Type: BNC
  • Convert To Gender: Jack
  • Adapter Body Style: Straight Bulkhead Adapter
  • Impedance: 50ohm
  • Connector Type: Inter Series Coaxial
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2018)
  • Body Plating: Nickel
  • Connector Mounting: Bulkhead Mount
  • Connector Mounting Orientation: Bulkhead
  • Connector Type A: BNC Plug
  • Contact Plating: Gold Plated Contacts
  • Insulation Resistance: 5000Mohm
  • Material: Brass
  • No. of Mating Cycles: 500
  • Operating Frequency Max: 4GHz
  • Operating Temperature Max: 165°C
  • Operating Temperature Min: -65°C
  • Voltage Rating VAC: 500V
