R143018000 RF Coaxial, TNC, Straight Plug, 50ohm RADIALL

RADIALLUGS :R143018000 Code de commande:4195516

Prix:
Prix ​​promotionnel€35,36

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (296 unité)

Documents et téléchargements

description

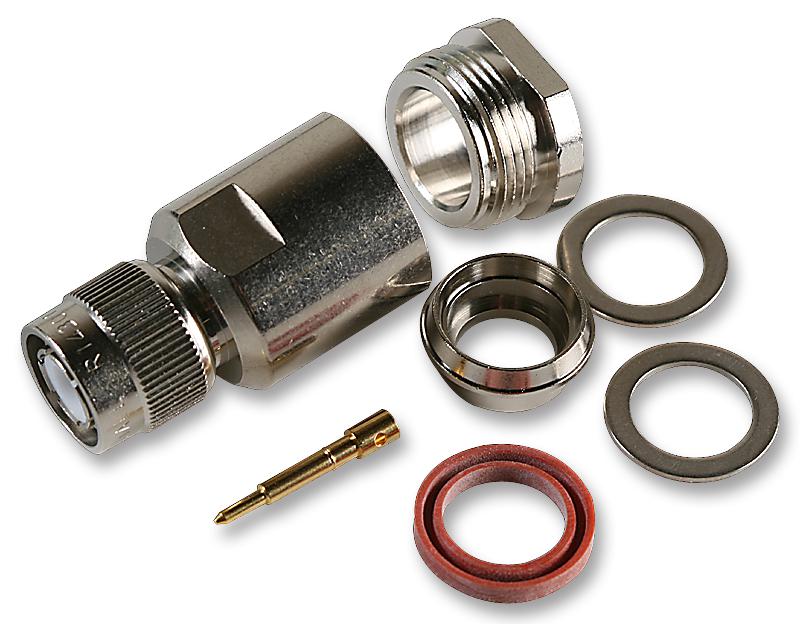

RADIALL - R143018000 - RF / Coaxial Connector, TNC Coaxial, Straight Plug, Solder, 50 ohm, RG213, RG214, RG225, RG393

  • Connector Type: TNC Coaxial
  • Connector Body Style: Straight Plug
  • Coaxial Termination: Solder
  • Impedance: 50ohm
  • Coaxial Cable Types: RG213, RG214, RG225, RG393
  • Contact Material: Brass
  • Contact Plating: Gold Plated Contacts
  • Frequency Max: 11GHz
  • Connector Mounting: Cable Mount
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2018)
  • Coaxial Type: RG165/U, RG213/U, RG215/U, URM67, URM102, KX4, RG393, RG119/U, RG214/U, RG225/U, URM91, URM112, KX13, KX24
  • Connector Mounting Orientation: Cable
  • Insulation Resistance: 5000Mohm
  • Material: Brass
  • No. of Mating Cycles: 500
  • Operating Frequency Max: 11GHz
  • Operating Temperature Max: 165°C
  • Operating Temperature Min: -65°C
  • Termination Method: Clamp
  • Voltage Rating VAC: 500V
  • Withstand Voltage: 1000V
