R143182000W RF Coaxial, TNC, Right Angle Plug, 50ohm RADIALL

RADIALLUGS :R143182000W Code de commande:4195553

Prix:
Prix ​​promotionnel€36,69

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (517 unité)

Documents et téléchargements

description

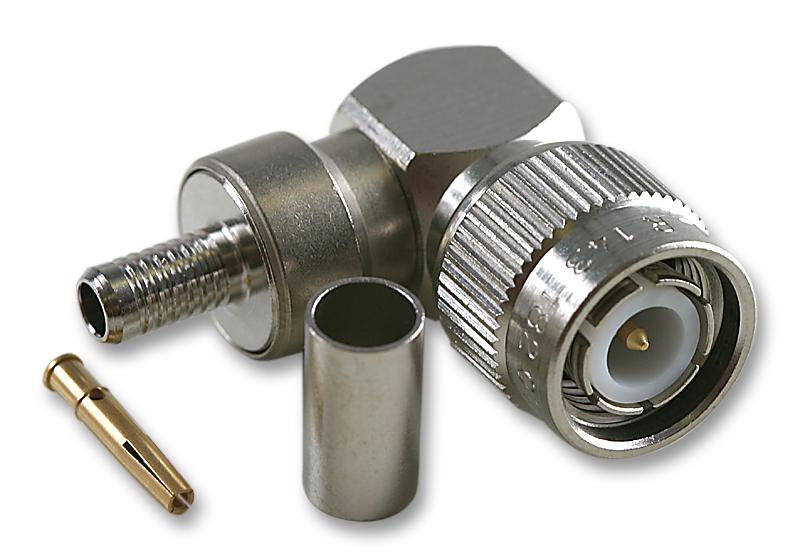

RADIALL - R143182000W - RF / Coaxial Connector, TNC Coaxial, Right Angle Plug, Crimp, 50 ohm, RG58, RG141, Brass

  • Connector Type: TNC Coaxial
  • Connector Body Style: Right Angle Plug
  • Coaxial Termination: Crimp
  • Impedance: 50ohm
  • Coaxial Cable Types: RG58, RG141
  • Contact Material: Brass
  • Contact Plating: Gold Plated Contacts
  • Frequency Max: 11GHz
  • Connector Mounting: Cable Mount
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2018)
  • Coaxial Type: RG58 C/U, RG141 A/U, RG303/U, URM43, URM72, URM76, URM108, URM301, KX15, LMR 200
  • Connector Mounting Orientation: Cable
  • Insulation Resistance: 5000Mohm
  • Material: Brass
  • No. of Mating Cycles: 500
  • Operating Frequency Max: 11GHz
  • Operating Temperature Max: 165°C
  • Operating Temperature Min: -65°C
  • Termination Method: Crimp
  • Voltage Rating VAC: 500V
  • Withstand Voltage: 1000V
