R143324000 RF Coaxial, TNC, Straight Jack, 50ohm RADIALL

RADIALLUGS :R143324000 Code de commande:4195590

Prix:
Prix ​​promotionnel€48,99

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (341 unité)

Documents et téléchargements

description

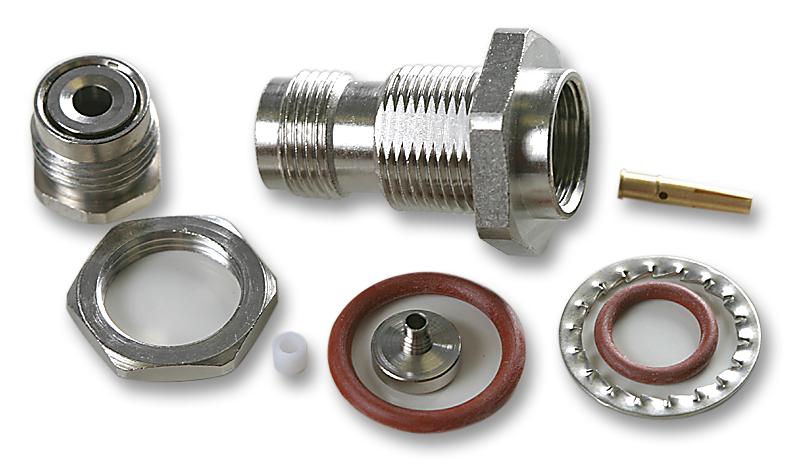

RADIALL - R143324000 - RF / Coaxial Connector, TNC Coaxial, Straight Bulkhead Jack, Solder, 50 ohm

  • Connector Type: TNC Coaxial
  • Connector Body Style: Straight Bulkhead Jack
  • Coaxial Termination: Solder
  • Impedance: 50ohm
  • Coaxial Cable Types: RG179, RG187, RG188, RG316
  • Contact Material: Beryllium Copper
  • Contact Plating: Gold Plated Contacts
  • Frequency Max: 11GHz
  • Connector Mounting: Panel Mount
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2018)
  • Coaxial Type: RG174 A/U, RG142, RG188 A/U, RG316/U, URM95, URM109, URM116, KX3B, KX22A, RG179 B/U, RG187 A/U, URM111
  • Connector Mounting Orientation: Panel
  • Insulation Resistance: 5000Mohm
  • Material: Brass
  • No. of Mating Cycles: 500
  • Operating Frequency Max: 11GHz
  • Operating Temperature Max: 165°C
  • Operating Temperature Min: -65°C
  • Termination Method: Clamp
  • Voltage Rating VAC: 500V
  • Withstand Voltage: 1000V
