R161168000 RF Coaxial, N, Right Angle Plug, 50ohm RADIALL

RADIALLUGS :R161168000 Code de commande:1207555

Prix:
Prix ​​promotionnel€43,10

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (451 unité)

Documents et téléchargements

description

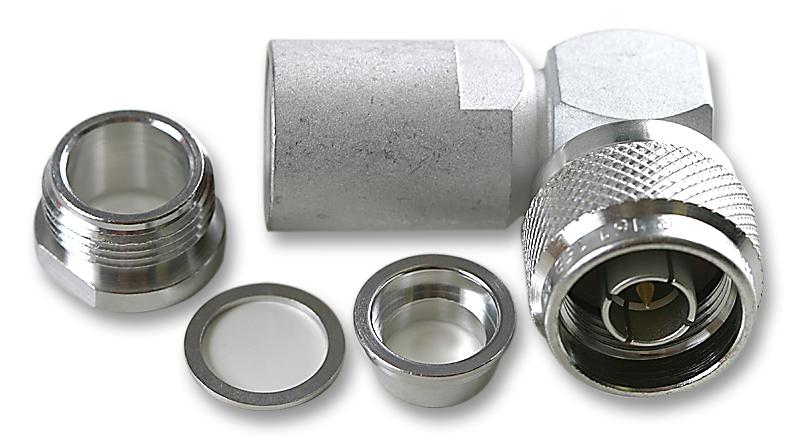

RADIALL - R161168000 - RF / Coaxial Connector, N Coaxial, Right Angle Plug, Solder, 50 ohm

  • Connector Type: N Coaxial
  • Connector Body Style: Right Angle Plug
  • Coaxial Termination: Solder
  • Impedance: 50ohm
  • Coaxial Cable Types: RG11, RG144, RG165, RG213, RG214, RG216, RG225, RG393
  • Contact Material: Brass
  • Contact Plating: Gold Plated Contacts
  • Frequency Max: 11GHz
  • Connector Mounting: Cable Mount
  • Product Range: -
  • SVHC: No SVHC (12-Jan-2017)
  • Body Plating: Bright Bronze
  • Coaxial Type: RG165/U, RG213/U, RG215/U, URM67, URM102, KX4, RG393, RG119/U, RG214/U, RG225/U, URM91, URM112, KX13, KX24
  • Connector Mounting Orientation: Cable
  • Insulation Resistance: 5000Mohm
  • No. of Mating Cycles: 500
  • Operating Temperature Max: 155°C
  • Operating Temperature Min: -55°C
  • Termination Method: Clamp
  • Voltage Rating VAC: 850V
