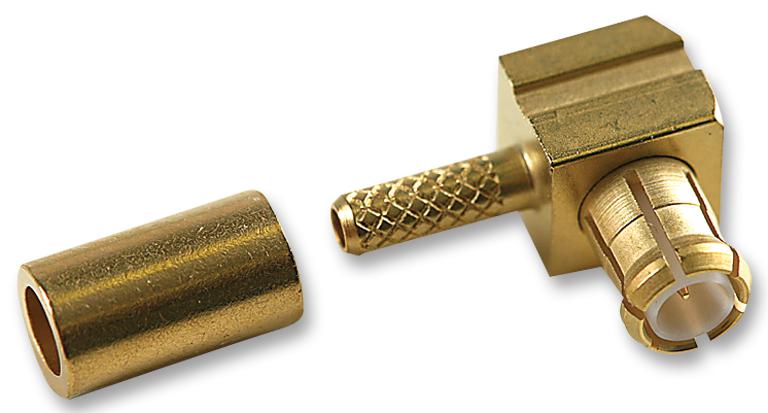

RADIALL - R213182007 - RF / Coaxial Connector, MCX Coaxial, Right Angle Plug, Crimp, 75 ohm, RG179, RG187, Brass
- Connector Type: MCX Coaxial
- Connector Body Style: Right Angle Plug
- Coaxial Termination: Crimp
- Impedance: 75ohm
- Coaxial Cable Types: RG179, RG187
- Contact Material: Brass
- Contact Plating: Gold Plated Contacts
- Frequency Max: 6GHz
- Connector Mounting: Cable Mount
- Product Range: -
- SVHC: No SVHC (15-Jan-2018)
- Body Plating: Bright Bronze
- Coaxial Type: RG179B/U
- Connector Mounting Orientation: Cable
- Material: Brass
- Operating Frequency Max: 3GHz
- Operating Temperature Max: 155°C
- Operating Temperature Min: -55°C
- Proof Voltage: 500V
- Termination Method: Crimp
- VSWR: 1.35
- Working Voltage: 170V
