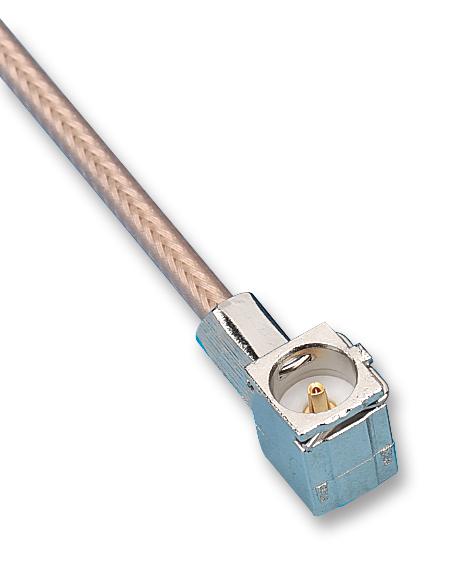

RADIALL - R284008004 - RF / Coaxial Cable Assembly, 90° MMT Plug to Free End, RG174, 50 ohm, 7.9 ", 200 mm, Black
- Connector to Connector: 90° MMT Plug to Free End
- Coaxial Cable Type: RG174
- Impedance: 50ohm
- Cable Length - Imperial: 7.9"
- Cable Length - Metric: 200mm
- Jacket Colour: Black
- Product Range: -
- SVHC: No SVHC (12-Jan-2017)
- Body Plating: Nickel
- Cable Assembly Type: Audio, Video
- Cable Length: 0.2m
- Coaxial Connector Type: MMT
- Coaxial Type: RG174
- Connector Type A: MMT Plug, 90°
- Connector Type B: Free End
- Frequency Max: 8GHz
- Insulation Resistance: 5000Mohm
- Lead Length: 200mm
- Material: Zinc, die cast
- No. of Mating Cycles: 500
- Operating Frequency Max: 8GHz
- Operating Temperature Max: 100°C
- Operating Temperature Min: -55°C
- Overall Length: 200mm
- Voltage Rating VAC: 170V
