R605600000 Receptacle, BR2, Hermetic RADIALL

RADIALLUGS :R605600000 Code de commande:4197021

Prix:
Prix ​​promotionnel€92,95

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (424 unité)

Documents et téléchargements

description

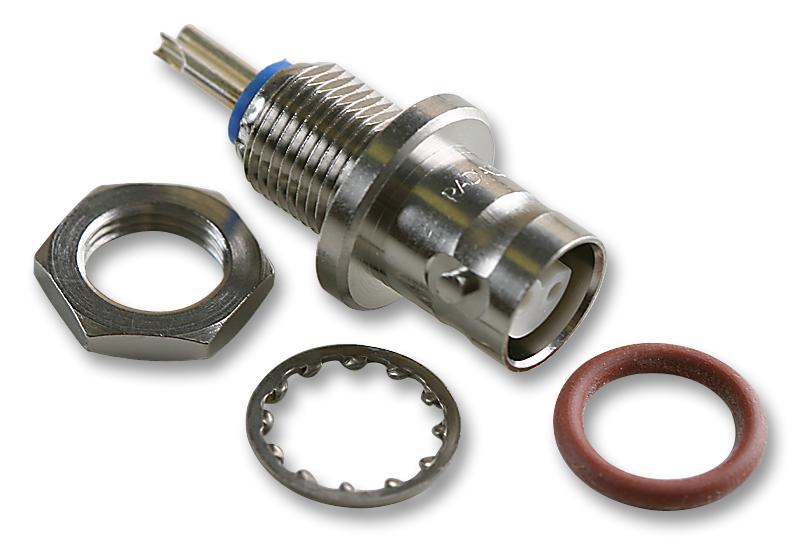

RADIALL - R605600000 - RF / Coaxial Connector, Coaxial, Straight Bulkhead Jack, Solder, 63 ohm

  • Connector Type: Coaxial
  • Connector Body Style: Straight Bulkhead Jack
  • Coaxial Termination: Solder
  • Impedance: 63ohm
  • Coaxial Cable Types: -
  • Contact Material: -
  • Contact Plating: Silver Plated Contacts
  • Frequency Max: 500MHz
  • Connector Mounting: Panel Mount
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2018)
  • Connector Mounting Orientation: Panel
  • Insulation Resistance: 105Mohm
  • No. of Mating Cycles: 500
  • Operating Frequency Max: 1GHz
  • Operating Temperature Max: 100°C
  • Operating Temperature Min: -40°C
