RB495DT146 Diode, Schottky Barrier, SC-59 ROHM

ROHMUGS :RB495DT146 Code de commande:1680029

Prix:
Prix ​​promotionnel€1,08

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
Seulement 3 produits disponibles

Documents et téléchargements

description

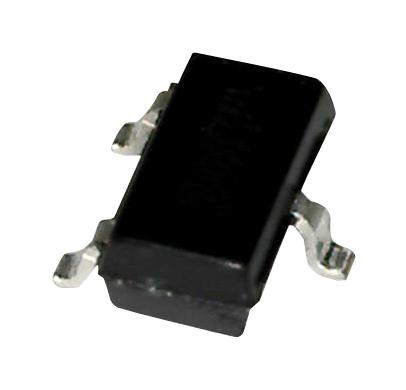

ROHM - RB495DT146 - Schottky Rectifier, 40 V, 400 mA, Dual Common Cathode, SOT-346, 3 Pins, 500 mV

  • Repetitive Reverse Voltage Vrrm Max: 40V
  • Forward Current If(AV): 400mA
  • Diode Configuration: Dual Common Cathode
  • Diode Case Style: SOT-346
  • No. of Pins: 3Pins
  • Forward Voltage VF Max: 500mV
  • Forward Surge Current Ifsm Max: 2A
  • Operating Temperature Max: 125°C
  • Product Range: RB495 Series
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (15-Jan-2018)
  • Current Ifsm: 2A
  • Diode Type: Schottky
  • Junction Temperature Tj Max: 125°C
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +125°C
  • Semiconductor Technology: Si
  • Termination Type: Surface Mount Device
