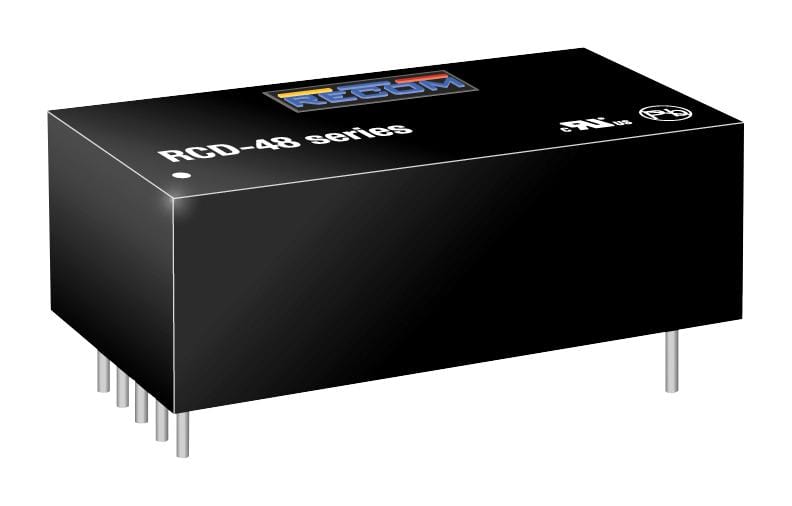

RCD-48-0.70/W LED Driver, DC-DC, CC, 0.7A, 56V RECOM Power

RECOM POWERUGS :RCD-48-0.70/W Code de commande:2070107

Prix:
Prix ​​promotionnel€39,17

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
Rupture de stock

Documents et téléchargements

description

RECOM POWER - RCD-48-0.70/W - LED Driver DC/DC Converter, ITE, RCD-48 Series, 39.2 W, 56 V, 700 mA, Analogue, PWM

  • Product Range: RCD-48 Series
  • Output Power Max: 39.2W
  • Output Voltage Max: 56V
  • Output Current: 700mA
  • Dimming Control Type: Analogue, PWM
  • DC / DC Converter Mounting: Chassis
  • DC / DC Converter Output Type: Adjustable
  • Input Voltage Min: 9V
  • Input Voltage Max: 60V
  • SVHC: No SVHC (15-Jan-2019)
  • Approval Bodies: EN, UL
  • Approvals & Standards: CSA, IEC 60601, UL
  • Efficiency: 96%
  • External Depth: 16.65mm
  • External Length / Height: 11.1mm
  • External Width: 32.6mm
  • Frequency Max: 1000kHz
  • Frequency Min: 50kHz
  • Input Voltage: 48VDC
  • LED Driver Mode: Constant Current
  • Lead Length: 103mm
  • No. of Channels: 1Channels
  • Operating Temperature Max: 75°C
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +75°C
  • Output Current Max: 700mA
  • Output Current Min: 0mA
  • Output Power: 70W
  • Output Ripple and Noise Voltage pk-pk: 300mV
  • Output Voltage Min: 2VDC
  • Power Consumption: 1.5W
  • Protection Type: Short Circuit Protection
  • Termination Style: Flying Leads
  • Weight: 16g
