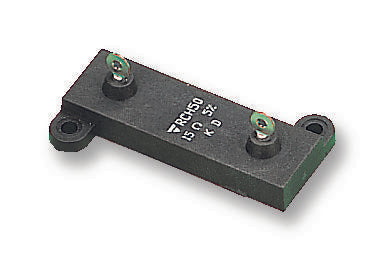

VISHAY - RCH25S15R00J - Resistor, 15 ohm, RCH Series, 25 W, ± 5%, Solder Lug, 550 V
- Resistance: 15ohm
- Product Range: -
- Power Rating: 4W
- Resistance Tolerance: ± 5%
- Resistor Case Style: -
- Voltage Rating: 550V
- Resistor Element Material: Thick Film
- Temperature Coefficient: ± 150ppm/°C
- Automotive Qualification Standard: -
- External Depth: 27.5mm
- External Length / Height: 15mm
- External Width: 28mm
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +125°C
- Overload Voltage: 1100V
- Power Rating with Heatsink: 25W
- Resistor Mounting: Panel
- Resistor Terminals: Solder Lug
