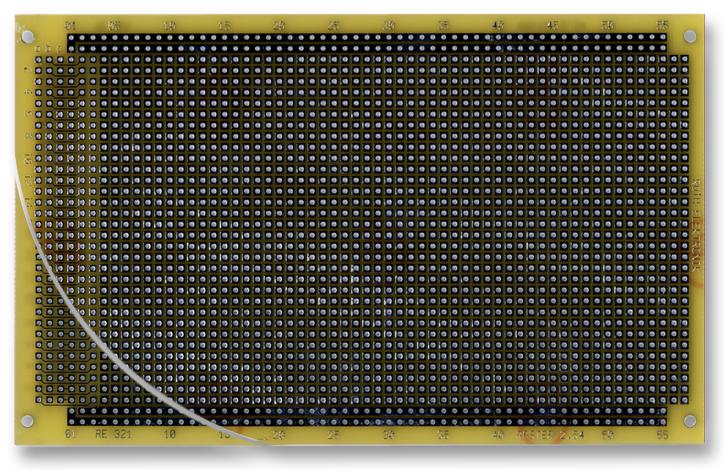

ROTH ELEKTRONIK - RE321-LF - PCB, Double-Sided, Eurocard, FR4, Epoxy Fibreglass, 1.5mm, 100mm x 160mm, 2.54 mm Pitch
- Board Type: Eurocard
- Board Material: Epoxy Glass Composite
- Hole Diameter: 1mm
- External Height: 100mm
- External Width: 160mm
- Board Thickness: 1.5mm
- SVHC: No SVHC (15-Jan-2019)
- Board Connector / Footprint: DIN41612 Type C
- Copper Coating Density: HAL 5 - 6 µm (hole 2 - 3 µm)
- Copper Thickness: 35µm
- External Length / Height: 100mm
- Hole Matrix: 36 x 55
- Hole Pitch: 2.54mm
- Material: Epoxy FR4
- No. of Copper Coated Sides: 2
- No. of Holes: 1980
- PCB Size: 100 x 160 mm
- Pad Area: 2.00 mm Ø
- Pad Diameter: 2mm
- Pitch Spacing: 2.54mm
