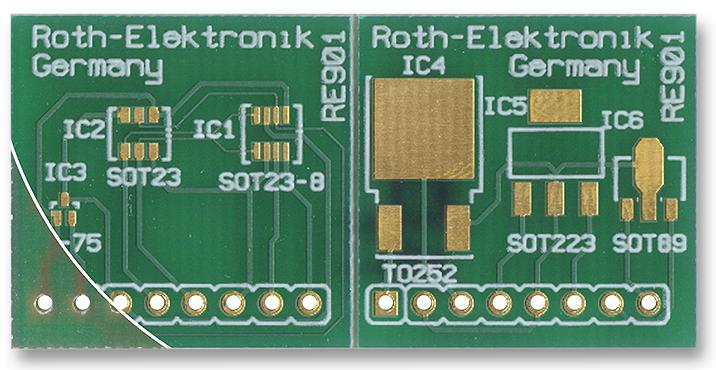

ROTH ELEKTRONIK - RE901 - PCB, Multiadaptor, Epoxy Glass Composite, 1.5mm, 22.86mm x 46.72mm
- Convert From: -
- Convert To: -
- Pitch Spacing: 2.54mm
- Row Pitch: -
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Board Connector / Footprint: SOT, TO, SC
- Board Material: Epoxy Glass Composite
- Board Thickness: 1.5mm
- Board Type: SMD Device Adapter
- Copper Coating Density: chem. Au 0.08 - 0.1 µm
- Copper Thickness: 35µm
- External Height: 22.86mm
- External Length / Height: 22.86mm
- External Width: 46.72mm
- Hole Diameter: 1mm
- Hole Pitch: 2.54mm
- Material: Epoxied FR4
- No. of Copper Coated Sides: 2
- PCB Size: 22,86 x 46,72 mm
- Pad Area: 1.50 mm Ø
- Pad Diameter: 1.5mm
