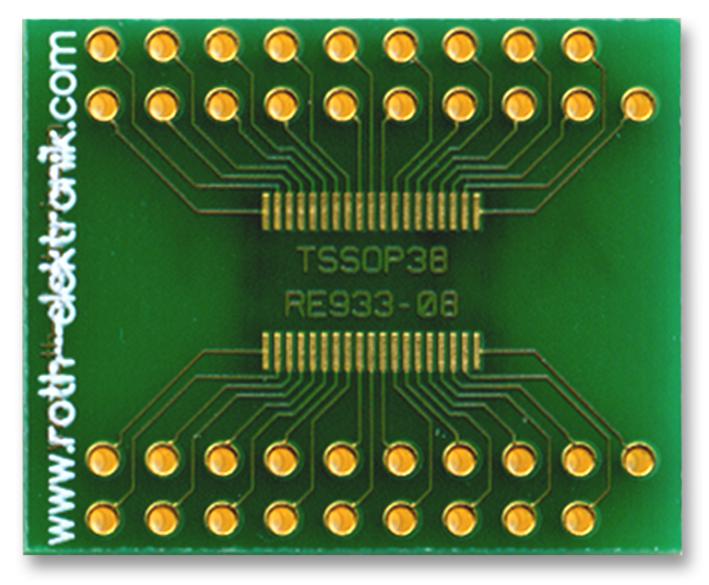

ROTH ELEKTRONIK - RE933-08 - Adaptor, SMD, Epoxy Glass Composite, 1.5mm, 23.5mm x 28.5mm
- Convert From: -
- Convert To: -
- Pitch Spacing: 2.54mm
- Row Pitch: 2.54mm
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Board Connector / Footprint: TSSOP-38
- Board Material: Epoxy Glass Composite
- Board Thickness: 1.5mm
- Board Type: SMD Device Adapter
- Copper Coating Density: chem. Au 0.08 - 0.1 µm
- Copper Thickness: 35µm
- External Height: 23.5mm
- External Length / Height: 23.5mm
- External Width: 28.5mm
- Hole Diameter: 1mm
- Hole Pitch: 2.54mm
- Material: Epoxied FR4
- No. of Copper Coated Sides: 2
- No. of Holes: 38
- PCB Size: 28.5 x 23.5 mm
- Pad Diameter: 1.5mm
