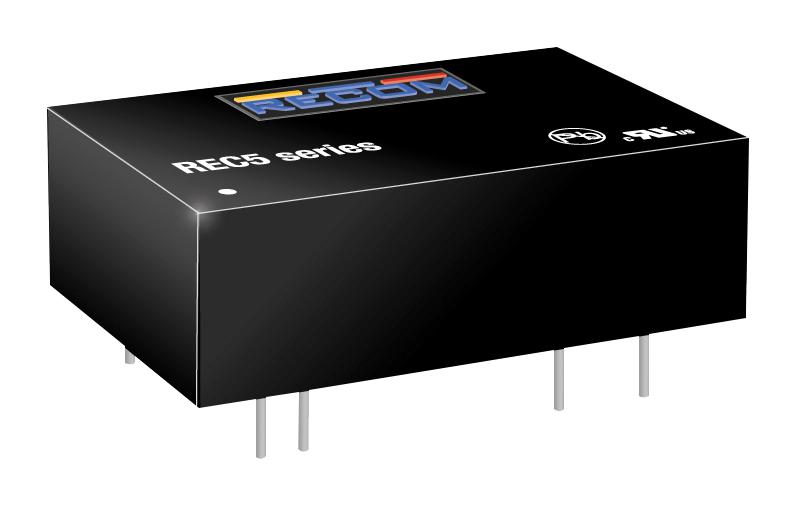

RECOM POWER - REC5-2405DRWZ/H2/A - Isolated Through Hole DC/DC Converter, ITE & Medical, 4:1, 5 W, 2 Output, 5 V, 500 mA
- No. of Outputs: 2 Output
- Output Power Max: 5W
- Output Voltage - Output 1: 5V
- Output Current - Output 1: 500mA
- Output Voltage - Output 2: -5V
- Output Current - Output 2: 500mA
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Product Range: REC5 Series
- Input Voltage DC Min: 9V
- Input Voltage DC Max: 36V
- DC / DC Converter Output Type: Fixed
- DC / DC Converter Type: DIP
- DC / DC Converter Mounting: Through Hole
- Width: 20.3mm
- Height: 10.2mm
- Depth: 32mm
- SVHC: No SVHC (15-Jan-2019)
- Approvals & Standards: EN, IEC, UL
